Модела REM.25t(2) е Нов ЖП кран (1435 mm междурелсие) {I генерация} се използва за товарене, повдигане, теглене и електрифициране на железопътна мрежа. Максималната товароподемност на крана е 25 t. Максималната скорост на движение е 100km/h.
/Вижте пълната техническа спецификация на жп крана по-долу./
The REM.25t(2) New Track crane (1435 mm gauge) {I generation} is applicable for loading, lifting, towing and electrified railway. Maximum lifting capacity crane is 25 t. The maximum traveling speed of 100km/h.

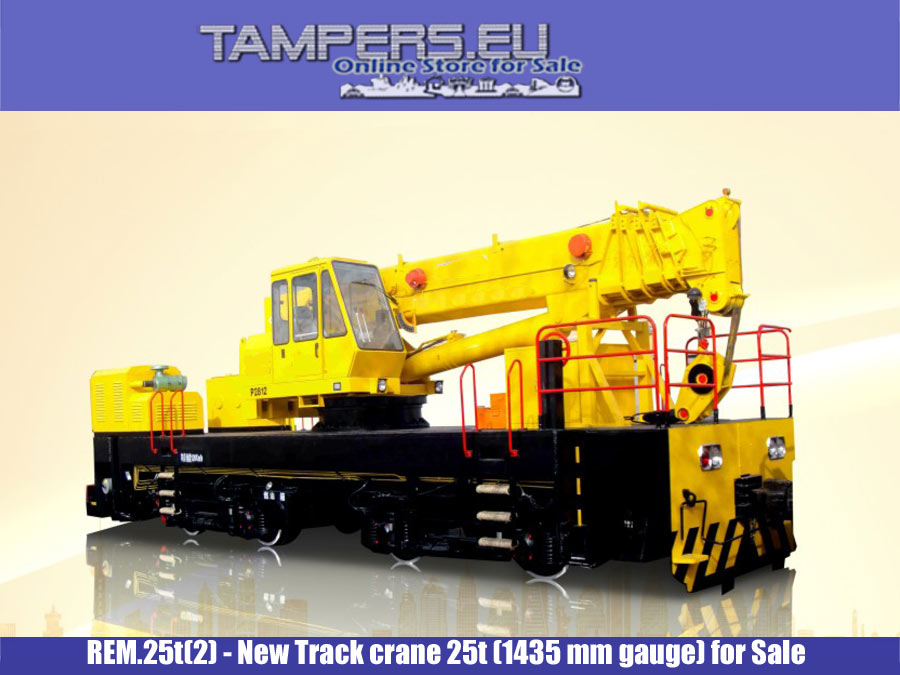

REM 25t-I track crane
Drawing
Specification, UIC 505-1 cabarite/loading gauge | |
Main dimensions (L × W × H): | 12070 mm × 3205 mm × 4105 mm |
Broad Gauge Track: | 1435 mm |
Mass, ton, not more: | 52 ton |
Maximum speed under own output: | 120 km/h |
Maximum speed in a train composition: | 100 km/h |
Maximum supereevation: | N/A mm |
Maximum working gradient: | N/A% |
Distance between pivot centers: | 12000 mm |
Speed working transfer: | 0-2,5 km/h |
Vibration frequency: | N/A |
Minimal radius of curve negotiated (working): | 100 m |
Minimal radius of curve negotiated (running): | 100 m |
Wheel base: | 1800 mm |
Wheel diameter: | 840 mm |
Brake mode: | air brake and hand brake |
EC certification: | ISO:Yes; EC certification: additionally paid |
Engine | |
Model | Asia or DEUTZ (Option for EC) |
Rated power | 82kW |
Specification, Hydraulic crane | |
Lifting torque: | 125t.m for fixed operation with outrigger/ 30t.m for mobile operation without outrigger |
Maximum lifting capacity: | 25t for fixed operation with outrigger/ 10t for mobile operation without outrigger |
Maximum lifting height: | 20.4m Boom length: 9.97m〜21m Boom elevation angle: -3° 〜+80° |
Boom control room (L x W x H) | 1545mm x 831mm x 1476mm |
Outrigger span (horizontal x vertical): | 5.5m x 6.7m |
Turntable tail - slewing radius: | 1961mm |
REM options:
FREE of charge REM options included in the contractual price as a standard delivery for the end customer:
+Free option 1: The REMTECH to train Railways technicians on machine operation and maintenance in the REMTECH manufacturer plant.
+Free option 2: The REMTECH to train Railways technicians on machine operating and maintenance in the country customers.
+Free option 3: Technical documents for operating, maintenance and repairs as well as spare parts catalogues in English language.
+Free option 4: All the plans and list of spare parts on CD.
+Free option 5: Adjustment of the machine as per the requirements of the Buyer.
+Free option 6: Air - conditioning system in the control cabins.
+Free option 7: Equipped with 4 buffers CAT A according to UIC 526-1 and etc.
Customer Login and Inquire About Price |
Not a tampers.org user yet? Register now free-of-charge and without obligation: |
ADDITIONAL OPTIONS against assitonal payment at client's desire:
