Visual Inspection of Tamper (terms):
= Broker network TAMPER.EU (active membership, different by Guest): NCND agreement and deposit 1000€
= Broker outside network TAMPER.EU (unregistered): NCND agreement and deposit 2000€
= End buyers, for contact email: sales@tampers.org or contact Head Office - NCND agreement and deposit 1000€
PRICE: Upon Request or Please log in to see the price
Sales information
- Seller: Directly owned Railway Company - For More Information Call
- Location - EU outside, For More Information Call
- Price EXW EU - is available on request
- TAMPERS.EU commission: YES
- UIC number: No
- Broad Gauge Track 1520 mm
- Production year: 1984
- In perfect technical condition
- Maximum load capacity: 80 000 kg
- Maximum transport speed (in train): 80 km/h
- Lenght with buffers: 11,84 m
- Wheel diameter: * m
- Weight: 125 000 kg
- Number of axles (wheelsets): 6
| Тechnical condition: Latest inspection (revision) 05.2019 (valid revision to 07.2022 yes), |
| Computer controlled: |
Works, |
| Crane Units: |
Works, Good mechanical condition |
| Axles and transmission: |
Works, Good mechanical condition |
| Engine: |
Works, Good mechanical condition |
=======================================================================
A. Totals
The manufacturer VEB Schwermaschinenbau SM Kirov Leipzig DDR - 7031 Naumburger Str. 28
Type of crane EDK500 / 1
Year of manufacture / serial number 1986/1330537
Appointment of a crane for loading and unloading valve
Drive diesel-electric
Operating Temperature (0 C) (-10 ... +10)
Restrictions do not use
Available head wind, Pa. 200
Allowable slope of the crane in working order 10 '
At the same time carried out by two labor movements, in addition to lifting and moving
Three-phase power - drives 380/50
AC - control of 220/50
DC - 12 repair coverage
Two. Main technical data and indicators
The maximum carrying capacity, t 80
Load moment, max. 5000 kNm
Maximum lifting height, m 17, 5
Outreach, m 6, 25 ... 21
Free carrier boom length, m 19, 5
Wheelbase, m 5, 8 .... 8, 1
Track width, m 1, 435
The base supports, m 4, 4 ..... 6 0
Minimum turning radius, m 100
Lifting speed lifting mechanism, m / min 03/06/12
Descent speed lifting mechanism, m / min 03/06/12
The rate of movement of the crane, m / min Max. 100
Allowable rate of repetition in the rolling stock (according to the rules w / w), km / h 100
Swing speed r / min 1
The angle of rotation, 360 degrees
The duration of recovery in the operating limit of Swing, 3 minutes
Place cab control
Type of Electrical Control
Supply current tap power from its own diesel generator or by cable from a local network, emergency tokootdacha possible
Weight of the crane in operation, 116 tons
Counterweight, T 10, 1
The load axis on a journey to the rolling stock, max., 190 kN
The load on the wheel when operating a crane, max., 244 kN
The load on the bearings, max., 1020 kN
Product information
Producer

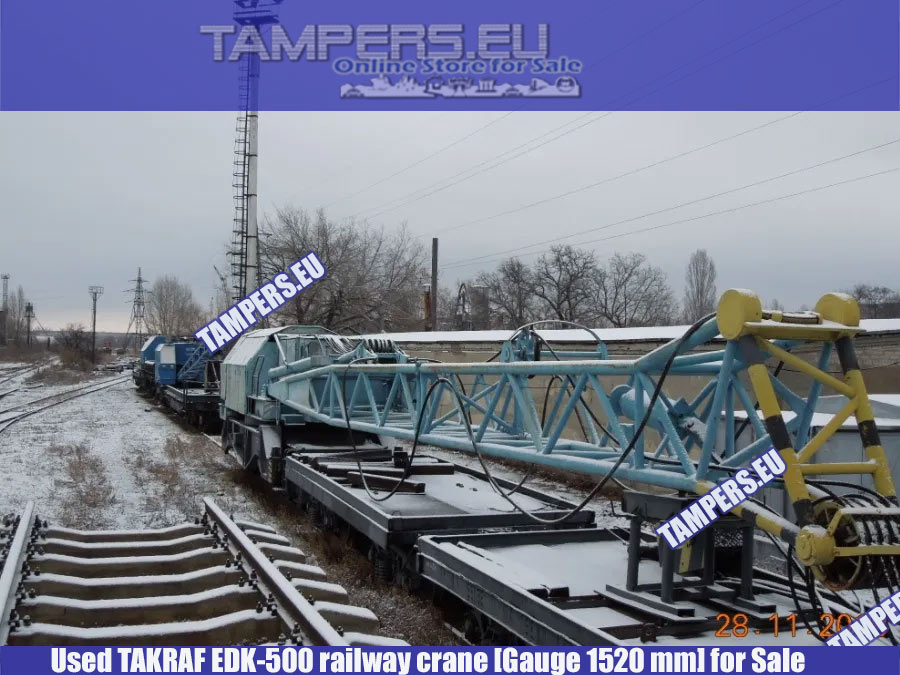

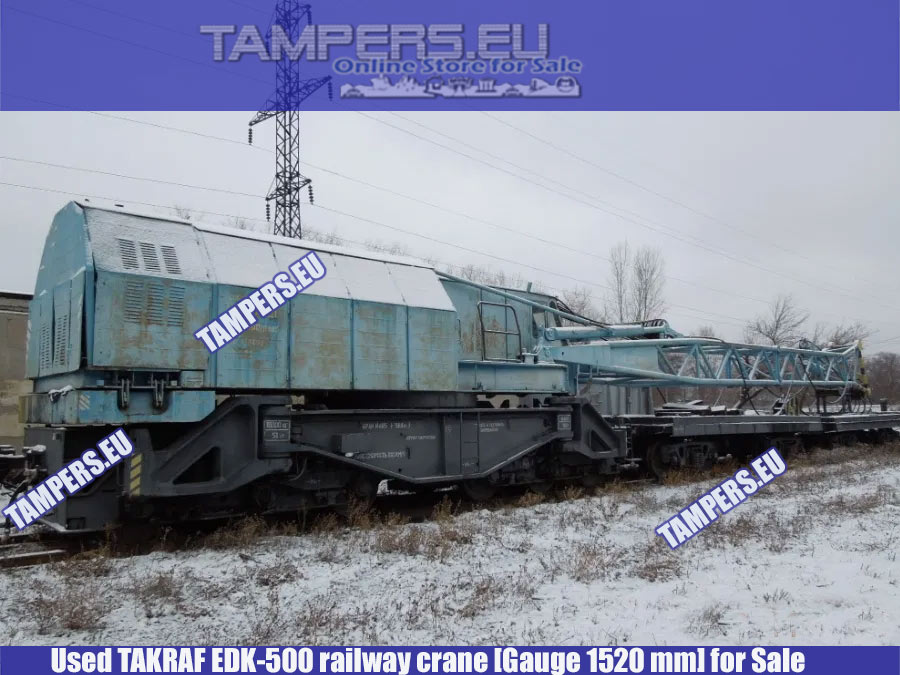

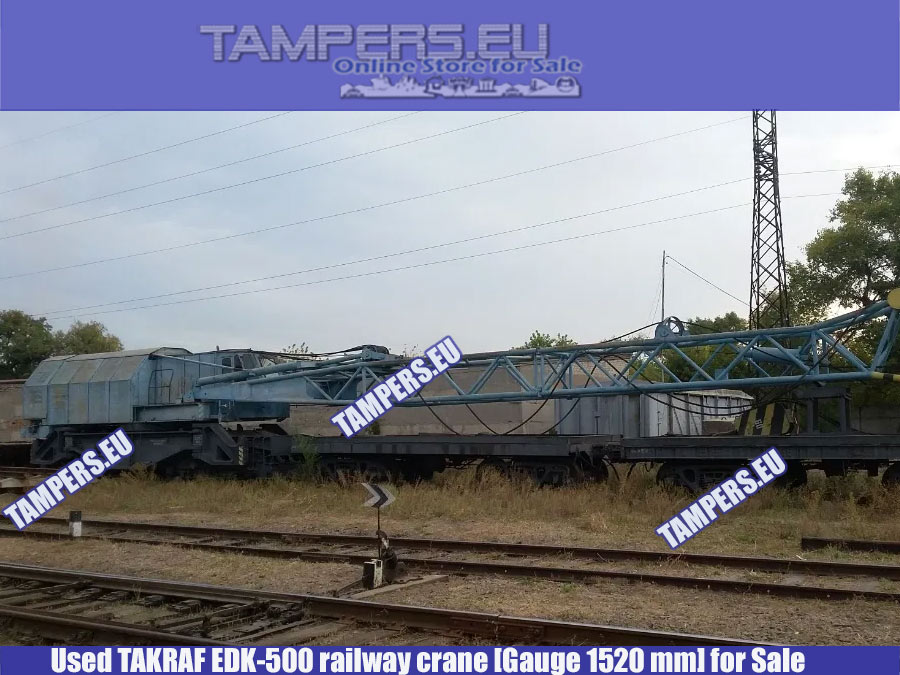

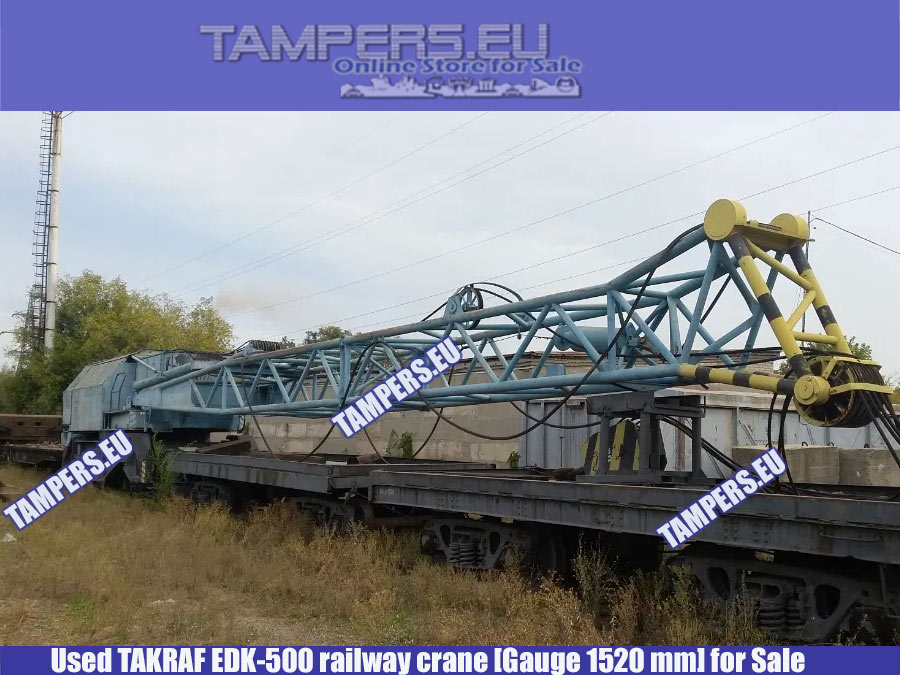

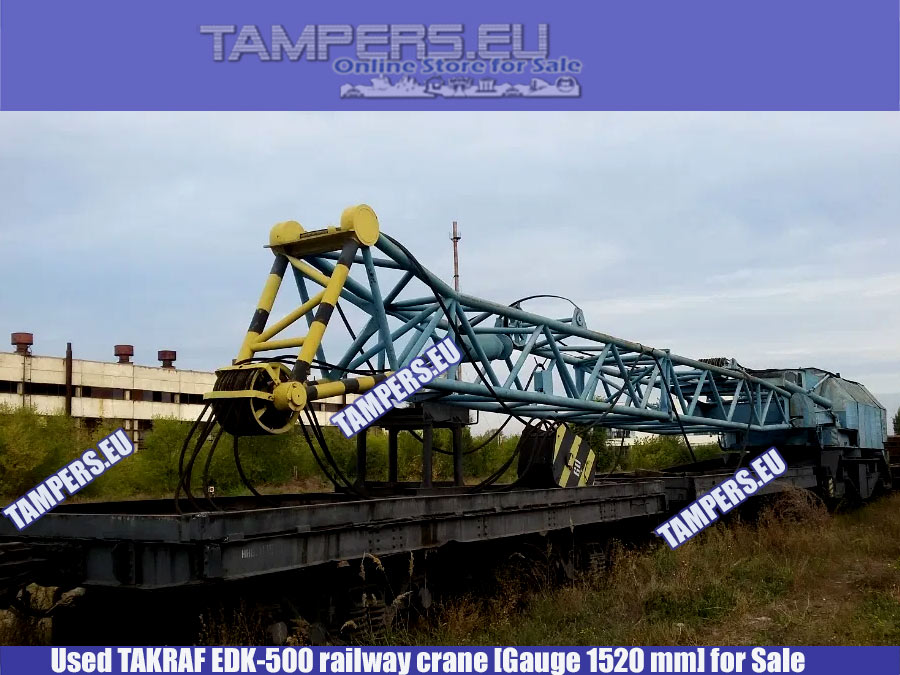

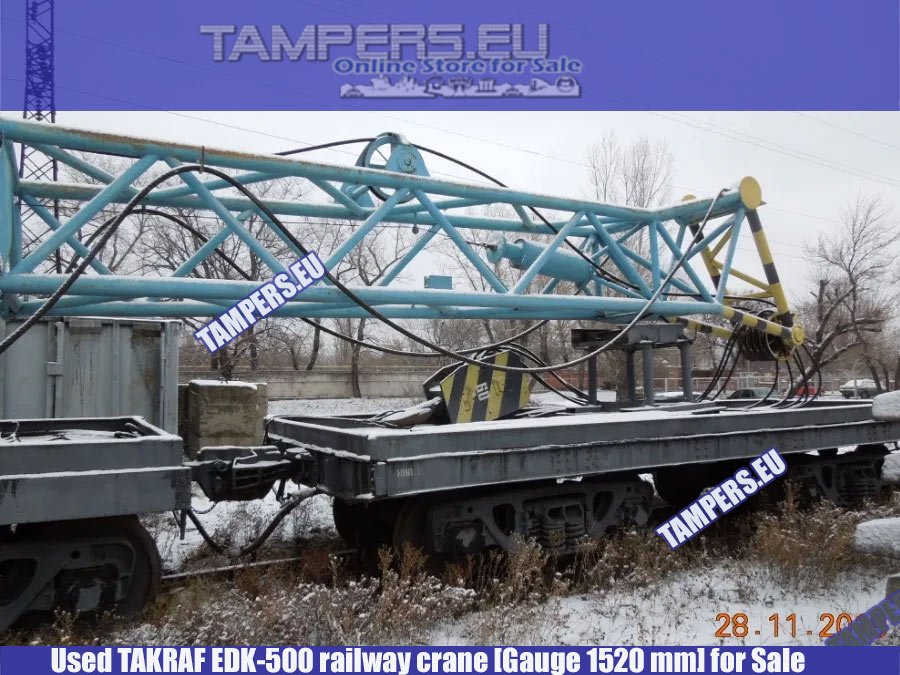

- Brand TAKRAF EDK500
-

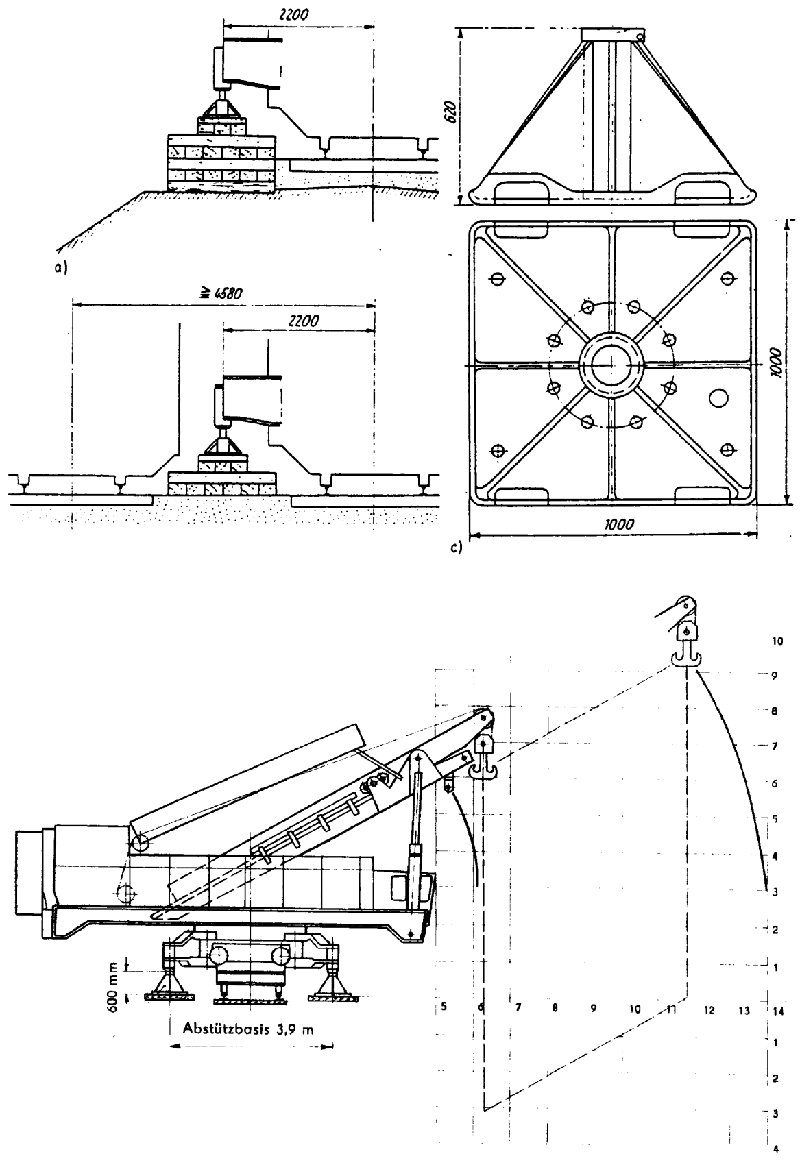

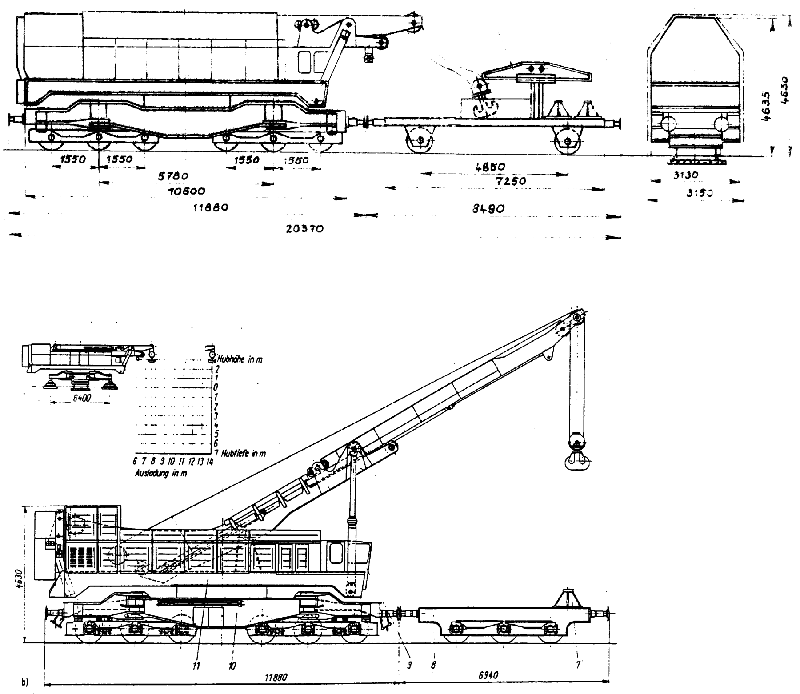

Drawing
- Model
- TAKRAF EDK500
- Year model
- 1984
- Chassisnumber
- is available on request
Vehicle information
- Registration number
- is available on request
- Weight (kg)
- 100000
- Latest inspection (revision)
- 2019 (valid revision to 2022)
- REM inspection ( are granted upon request, contact our regional office or agent)
- 2020
- Transmission
- Unknown
Engine/Fuel
- Engine volume
- is available on request
- Engine output
- is available on request
- Fuel type
- Diesel
- Number of fuel tanks
- 01
Load details
- Load dimensions (l/w/h)
- L = 11840 / W = 3000* / H = 4500* mm
- Payload (kg)
- N/A
Truck details
- Cabin
- Unknown
- Axle type
- Unknown
- Hydraulics
- N/A
- Pull-hook
- N/A
- Accessories
- N/A
- Euro class
- N/A
Suspension
- Front shaft
- N/A
- Drive shaft
- N/A
- Bogie
- N/A
Tractor
- Disc
- N/A
- Locking
- N/A
Other information
-
- GB: Ballast profiler
Last inspection 2019, last service 2020.
