Подбивна ж.п. машина 09-32 CSM 12.1985

Sales information

• Seller - REMTECHNOLODGY LTD (REMTECHSTROY GROUP)
• Location - EU, Western Europe
• Price EXW -  is available on request
• REM commission - ***
• The price is FOB Port of Bulgaria: For Price and More Information Call.

=======================================================================

• Broad Gauge Track 1435 mm:
• The Optional Broad Gauge Track 1520 mm: The rebuild in REM plant

Product information

Producer

Brand

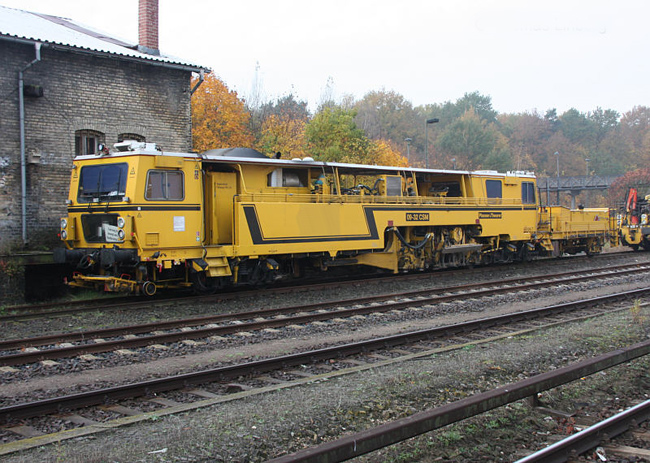

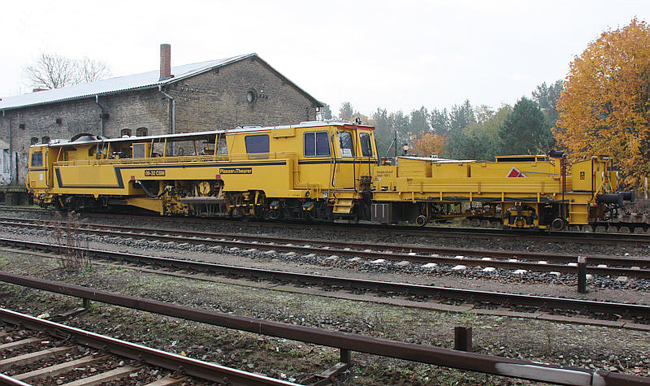

The continuous action tamping machine (Non-stop tamping).
The way to success.
The success of the 09 series is based on the notion of separating the main frame from the work unit frame. This means that the main frame can move forward continuously during work, when the essentially cyclic action of the working unit for lifting, lining and tamping is limited to the sub-frame.
This brings:
Higher working speed
The working speed of a machine from the 09 series lies up to 50% above that of the conventional tamping machine. Even short train intervals can be used effectively and cost-efficiently.
Reduction of running costs
Due to the substantially lower acceleration of mass, the wear on breaks as well as on hydraulic and pneumatic components is reduced.
Highest working comfort
Due to the separation of main frame and sub-frame, the vibrations of the work units are not transmitted to the cabins. Working comfort is considerably improved, as the operator is no longer subjected to the acceleration pull and the braking jolts.
Easy combination with other operations
The continuous working action permits ideal combination with other continuous action machines such as a ballast plough and a dynamic track stabilizer, to form a high capacity mechanized maintenance train (HMDZ).

Main Frame
Made of rolled profiles and steel sheets, produced using the most up-to-date welding methods: the design guarantees stability and precision even on heavy types of permanent way. Two 2-axled bogies ensure smooth vehicle running.
Sub-frame
It carries all work units and measuring systems that use the cyclic work sequence: the lifting and lining units, the two tamping units and the sleeper-end consolidators. At the front it is supported on the main frame via a longitudinal roller guide. The sub-frame axle, powered by hydraulics during working travel, hydraulic cylinders and a pneumatic brake ensure the cyclic work sequence.
Tamping units
The two high-pressure tamping units work according to the well-proven non-synchronous uniform pressure tamping principle. Force equilibrium between the tine pairs, directional vibration in the squeeze direction and the ideal vibration frequency of 35 Hz guarantee completely uniform tamping. For work in curves the unit can be centered automatically over each rail.
09-32 CSM : two tamping units with 32 tamping tines in all for tamping two sleepers per tamping cycle.
Sleeper - end consolidators
On request, hydraulically powered sleeper-end consolidators can be mounted level with the tamping units. During tamping these fill empty gap occurring at the front side of the sleeper during the lining process. This permits optimum fixation of the track in lifted and lined position.
Lifting and lining units
The two well-proven roller lifting and lining units lift and line the track in one operation. The units have a total of four roller-lifting clamps. The distribution of the lifting forces and the exact centering of the units over the rails prevent the occurrence of tilting moments and excessive wear on rail fastenings. At the start of work they are lowered on to the track and remain there during entire work process. Lifting and lining is carried out only when the unit is at standstill. This permits precise lifting and lining. During forward motion the corresponding hydraulic cylinders are switched to pressure less mode.
Driver’s cabin
The cabin at the front of the machine houses the operating controls for the lining and leveling system and is equipped with all necessary controls for transfer travel.
Drive and work cabin
In the second cabin all operating and monitoring controls for operations and for transfer travel are clearly laid out. Large safety glass windows offer an excellent view onto the working area. Extensive soundproofing and vibration dampening achieve the high level of working comfort. Access to the cabins is via side steps and safety platforms. Between the two cabins there is an end-to-end roof and a connecting corridor for servicing.
ALC
The system calculates the correction values for maintenance of track radii and passes the results continuously to the measuring systems during work. The required target data is keyed in before start to work. Using this system it is possible to treat the entire track geometry. The ALC automatic guiding computer works on the basis of an industrial computer with a monitor and a keyboard. This concept permits the almost unlimited storage of track geometry data. Once entered, the data will be available at any time. Moreover, when the target geometry is unknown, the actual track position can be determined with the aid of measuring run by the tamping machine and the target geometry can be obtained via subsequent optimization calculation taking into account existing restrictions and fixed points. Electronic versine compensation is also available.
Processor control

All work sequences and hydraulic processes are controlled and monitored by a microprocessor. The entire electronic system is built in modular design. The program control contains a measuring and monitoring system that enables fast checking of all control functions.

A variety of auxiliary units help speed up the work process considerably. For example, the fully automatic control of the tamping process and the forward motion of the machine are available. The work speed can be selected freely in a certain range.

The advantages
- Highest tamping due to non-synchronous uniform pressure tamping principle
- Optimum tamping frequency of 35 Hz
- Directional, linear vibration
- 50% higher work capacity
- Unrivalled working comfort
- Reduced wear
The savings
- Lower maintenance costs due to high tamping output
- Lower operational hindrance costs due to optimum utilization of short intervals between trains
- Reduction of running costs due to less consumption of spare parts


  Drawing





Model

 09-32 CSM

Year model

 12.1985

Chassisnumber

is available on request

Vehicle information

Registration number

is available on request

Weight (kg)

 68000

Latest inspection (revision)

 16.06.2009 (valid revision to 16.06.2015)

REM inspection ( are granted upon request, contact our regional office or agent)

 14.11.2012

Transmission

Unknown

Engine/Fuel

Engine volume

is available on request

Engine output

is available on request

Fuel type

Diesel

Number of fuel tanks

01

Load details

Load dimensions (l/w/h)

 L = 27640 / W = 2990 / H = 3600 mm

Payload (kg)

N/A

Truck details

Cabin

Unknown

Axle type

Unknown

Hydraulics

N/A

Pull-hook

N/A

Accessories

N/A

Euro class

N/A

Suspension

Front shaft

N/A

Drive shaft

N/A

Bogie

N/A

Tractor

Disc

N/A

Locking

N/A

Other information



GB: Tamping machine
D: Подбивна ж.п. машина

 Last inspection 14.11.2012, last service 14.11.2012.

REM inspection 14.11.2012 (are granted upon request, contact our regional office or agent)

  *****

  REM options:
