Реконструирани 2005 година Подемен кран / портален кран Donelli (02 Броя к-т, Основен ремонт 2005 г., жп габарит 1000 мм) за Продажба

Visual Inspection of Tamper (terms):
= Broker network TAMPER.EU (active membership, different by Guest): NCND agreement and deposit 1000€
= Broker outside network TAMPER.EU (unregistered): NCND agreement and deposit 2000€
= End buyers, for contact email: sales@tampers.org or contact Head Office - NCND agreement and deposit 1000€
PRICE: Upon Request or Please log in to see the price

Sales information

• Seller: Directly owned European Railway Company - For More Information Call
• Location -  Europa, For More Information Call
• Price EXW EU -  is available on request
• TAMPERS.EU commission: YES (3% over € 100,000, but not less minium 8.000 euro/pct for 1000 mm Gauge Track)
• UIC number: YES
• Broad Gauge Track 1000 mm
• Production year: is available on request , Rebuilt 2005

=======================================================================

Product information

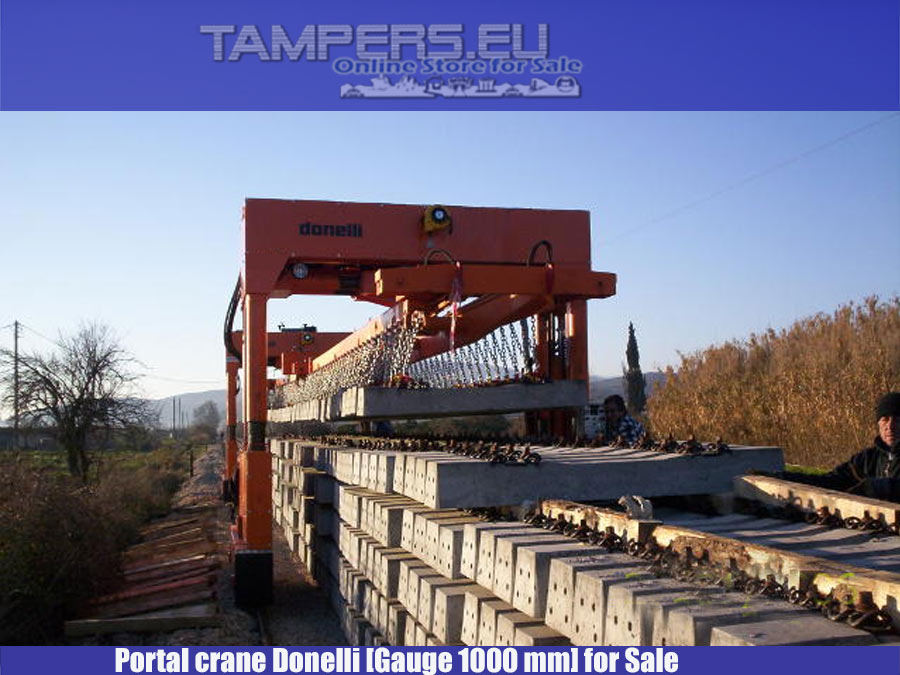

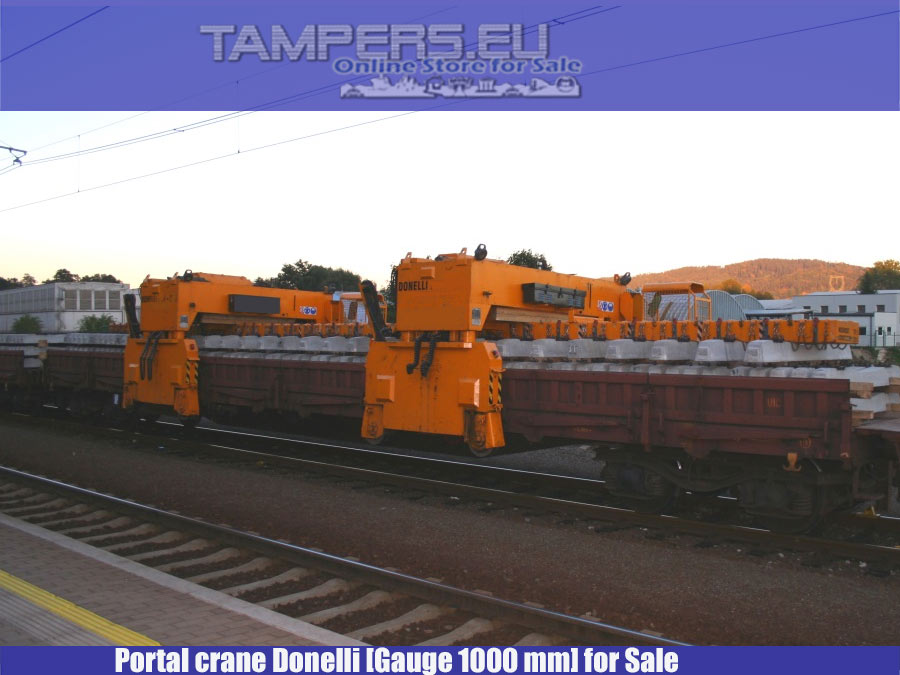

 The Donelli set comprises two gantry cranes with a lifting capacity of 9 kN each and a spreader beam with a deadweight of 4700 kg and load-carrying capacity of 13300 kg.
  The set will be used for:
   removing tracks
  Tracks are split into the so-called “spans” (with a length of 24 - 36 metres and with a weight of up to 13.3 tonnes) and seized by two pairs of stationary tongs at the ends of the spreader beam and by one pair of movable tongs between the stationary ones.
   laying sleepers for a new track
  A new track is laid by means of two rows of chains with grips capable to carry from 60 sleepers weighing up to 220 kg to 40 sleepers weighing up to 320 kg.
  The whole set travels along a working track usually made from rails intended for building into the new track. The machinery was manufacturer from GEISMAR.

Drawing

Producer

Brand

GEISMAR

Model

is available on request

Year model

is available on request, Rebuilt 2005 year

Chassisnumber

is available on request

Vehicle information

Registration number

is available on request

Net Weight (kg)

26000 (tara 10000 kg)

Latest inspection

2020

REM inspection ( are granted upon request, contact our regional office or agent)

2020

Transmission

Hydro-dynamic torque converter connected to 2 mechanical gear bohes

Engine/Fuel

Engine volume

N/A

Engine output

N/A

Fuel type

N/A

Number of fuel tanks

N/A

Computer controlled tamping

Computer type

N/A



Tamping units

N/A

Load details

Load dimensions (l/w/h) one unit

L = 3310 mm x W = 3820 mm x H = 3820 mm

Payload (kg)

6000kg

Truck details

Cabin

Unknown

Axle type

Unknown

Hydraulics

N/A

Pull-hook

N/A

Accessories

N/A

Euro class

N/A

Suspension

Front shaft

N/A

Drive shaft

N/A

Bogie

N/A

Tractor

Disc

N/A

Locking

N/A

Other information



GB: Tamping machine
D:

Travelling Speeds: max 70km/h (43 m.p.h), on 2% gradient max. 30 km/h (22 m.p.h.)
Last inspection 2020, last service 2020.

REM inspection 2020 (are granted upon request, contact our regional office or agent)
