Visual Inspection of Tamper (terms):
= Broker network TAMPER.EU (active membership, different by Guest): NCND agreement and deposit 1000€
= Broker outside network TAMPER.EU (unregistered): NCND agreement and deposit 2000€
= End buyers, for contact email: sales@tampers.org or contact Head Office - NCND agreement and deposit 1000€
PRICE: Upon Request or Please log in to see the price
Sales information
- Seller: Directly owned - For More Information Call
- Location - outside Europa , For More Information Call
- Price EXW EU - is available on request
- TAMPERS.EU commission: YES (3% over € 100,000 sale price)
- UIC number: Yes
- Broad Gauge Track: 1520 mm
- Production year: 2008,
- Set 06: platforms PPK-2B, PPK-3B, PR,
- The price for New UK25/9-18 is EXW Plant RU: 1.679.300 $ (1.305.720 euro) without VAT
| Тechnical condition Latest inspection (revision) 20.01.2019-2020 |
| Crane controlled system: |
Works, |
| Crabe units: |
Works, |
| Axles and transmission: |
Works, |
| Engine: |
Works, |

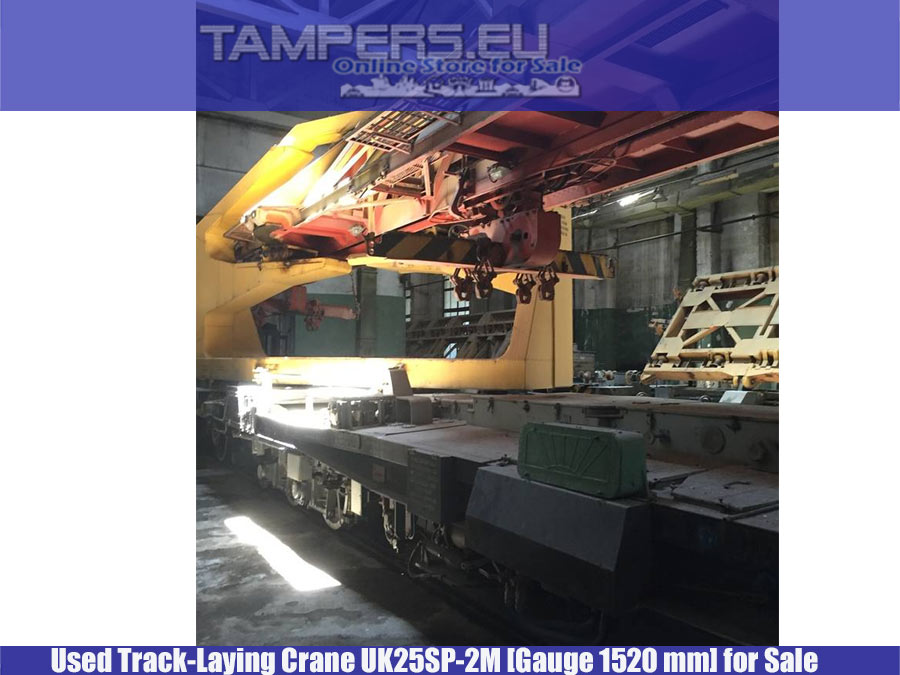

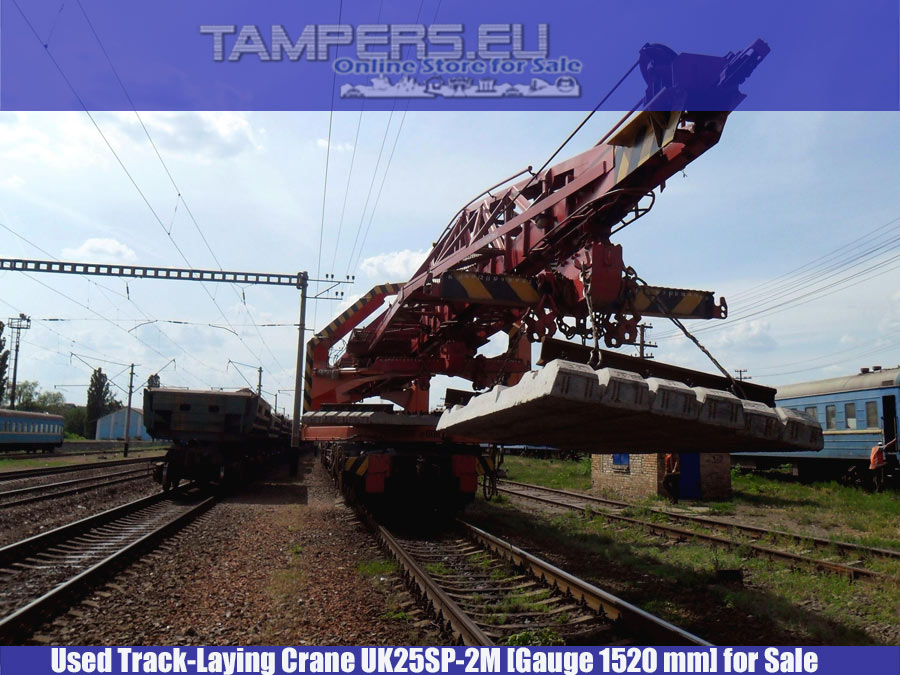

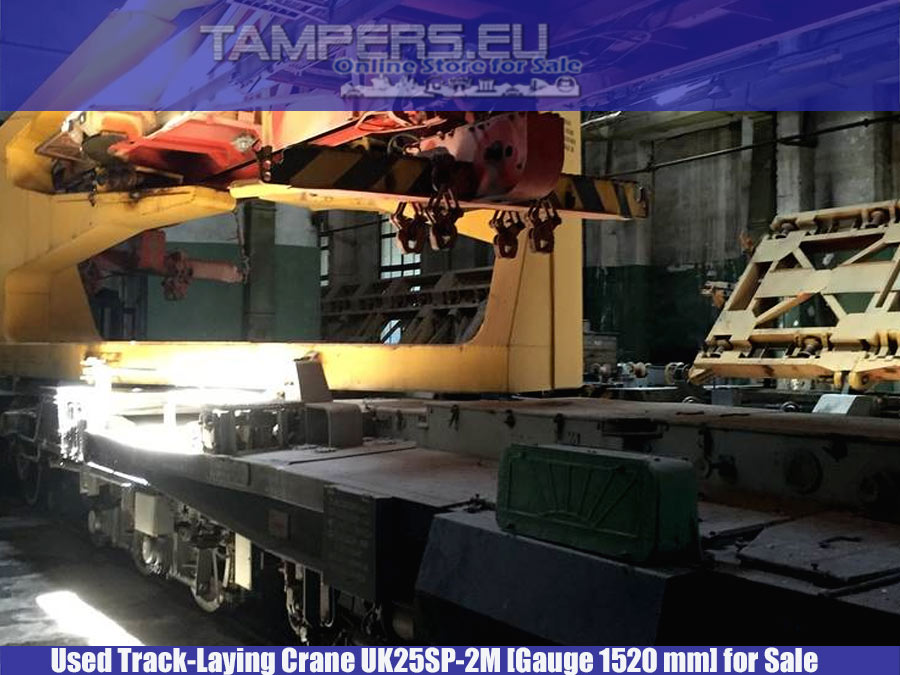

Railway Track-Laying Crane UK25SP-2M
Laying crane for changing the turnouts with large rail lengths, for transportation and change with large rail lengths the turnouts models 1/6, 1/9, 1/11 with the rails P43, P50, P65 on the ferro-concrete and wooden sleepers and weighing no more than 20 t.
Destination
Laying crane for changing the turnouts with large rail lengths.
Self-propelled laying crane УК-25СП is the leading machine in complex destined for transportation and with large rail lengths the turnouts models 1/6, 1/9, 1/11 with the rails P43, P50, P65 on the ferro-concrete and wooden sleepers and weighing no more than 20 t, and it also can be used for dismantling and laying the rail lengths 12,5 m long on the wooden and ferro-concrete sleepers.
Technical characteristics
Lifting capacity – 20 t
Maximum length of the laid and removed units – 12,5 m
Gabarit in a transport position ГОСТ 9238-83-1-Т
Transport speed as a part of cargo train – 80 km/h
Power of power plant – 2x140 kW
Service weight – 98 t
Pulling force of a crab for moving the packs of units - 3,0 ton-forces
Mechanized platform ППК-2В(PPK-2B)
Mechanized platform ППК-2В is a part of КЗСП complex destined for transportation of the post-frog blocks 12,5 m long and having a weight up to 19 t at (-10°C)…(+40°C) ambient air temperature and at no more than 1000 m height above sea level.
Destination
Mechanized platform ППК-2В is a part of КЗСП complex destined for transportation of the post-frog blocks 12,5 m long and having a weight up to 19 t at (-10°C)…(+40°C) ambient air temperature and at no more than 1000 m height above sea level.
The platform is equipped with an autonomous energy source of the executive devices.
Technical characteristics
Type – four-axle
Load-carrying capacity – 66 t
Gabarit in a transport position – ГОСТ 9238-Т
Dimensions of a transportable block (length x width) – 16,2x3,5 m
Service weight – 26 t
Mechanized platform ППК-3В(PPK-3B)
Mechanized platform ППК-3В is destined for transportation of a turnout frog block for high-speed operation on the ferro-concrete or wooden bars with the rails P65 and P50.
Destination
Mechanized platform ППК-3В is destined:
• for transportation of a turnout frog block for high-speed operation on the ferro-concrete or wooden bars with the rails P65 and P50 of 1/9 and 1/11 marks (right and left) it T gabarit under point 3.8 of ГОСТ 9238;
• for transportation of a turnout frog and post-frog blocks 1740 and 2750 in T gabarit;
• for passing through itself other turnout blocks.
Short description
The platform is equipped with autonomous power source of the executive mechanisms of 22,1 kW power. Exploitation is performed in the open air in temperate climate conditions at ambient air temperature -10°C…+35°C, at non-normable relative humidity at no more than 1000 m height above sea level.
Technical characteristics
Maximum carrying capacity – 40 t
Maximum dimensions of transported blocks:
- length – 25 m
- width – 5,5 m
Drive of the executive mechanisms – hydraulic
Transport speed as a part of freight train (loaded, empty) – 80 km/h
Gabarit, ГОСТ 9238:
- in an empty condition – 1-T
- when transportation of turnout blocks – T under point 38
Overall dimensions in a transport mode:
- length on the automatic couplers axes – 26580 mm
- width – 2800 mm
- maximum height – 3970 mm
Service weight – 50,4 t
Servicing staff – 1 pers.
Product information
Producer
- Brand
- Кalugaputmash, The year model of the UK25SP-2M
- Model
- Railway Track-Laying Crane UK25SP-2M+ complex with the platform PPK-2B, PPK-3B (platforms rollers 04 PCT)
- Year model
- 2008 year
- Chassisnumber
- is available on request
Vehicle information
- Registration number
- is available on request
- Weight (kg)
- 98000 (platform 50400 kg)
- Latest inspection
- 2020
- REM inspection ( are granted upon request, contact our regional office or agent)
- 2020
- Transmission
- 4 axles- 4 are drive axles /2 bogies/
Engine/Fuel
- Engine volume
- -
- Engine output
- 2x 121kW
- Fuel type
- Diesel
- Number of fuel tanks
- 01
Computer controlled tamping
- Plasser Computer type
- N/A
-
- Plasser Tamping units
- N/A
Load details
- Load dimensions (l/w/h)
- L = 43330 mm x W = 3250 mm x H = 5280 mm (platform L = 26580 mm x W = 2800 mm x H = 3970 mm)
- Load-lifting capacity: (kg)
- 20000kg
Truck details
- Cabin
- Unknown
- Axle type
- Unknown
- Hydraulics
- N/A
- Pull-hook
- N/A
- Accessories
- N/A
- Euro class
- N/A
Suspension
- Front shaft
- N/A
- Drive shaft
- N/A
- Bogie
- N/A
Tractor
- Disc
- N/A
- Locking
- N/A
Other information
-
- GB: Railway Track-Laying Crane UK25/9-18/REMv1.0 D: Railway Track-Laying Crane UK25/9-18/REMv1.0
Last inspection 2020, last service 2020.
REM inspection 2012-01-29 (are granted upon request, contact our regional office or agent)
