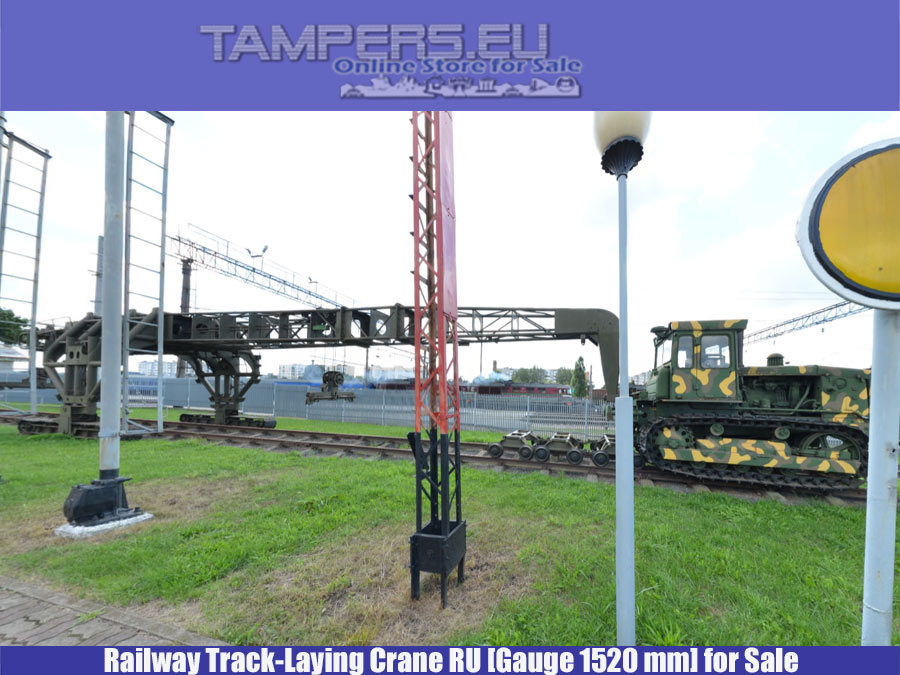

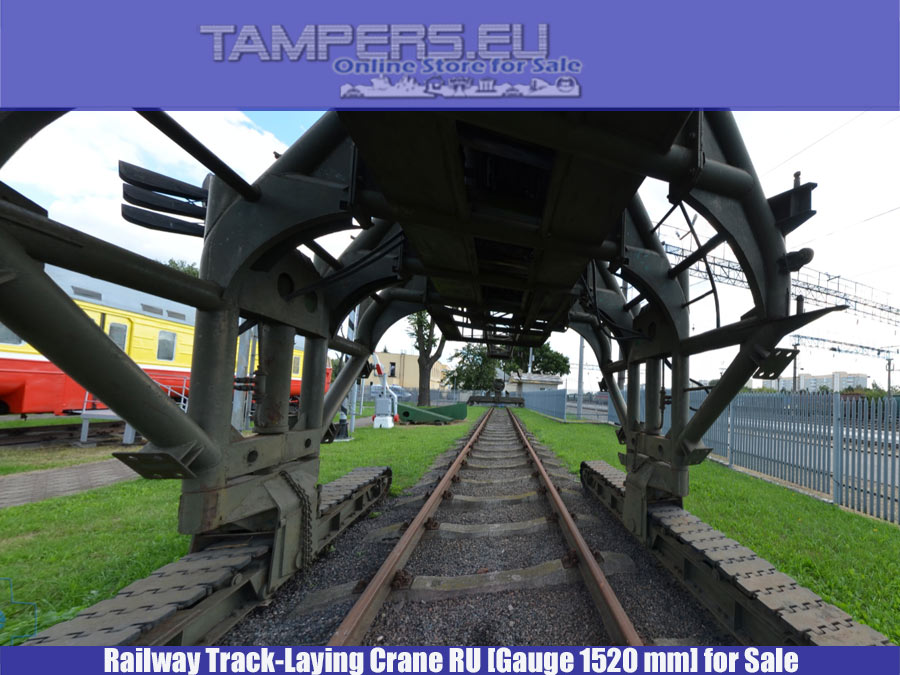

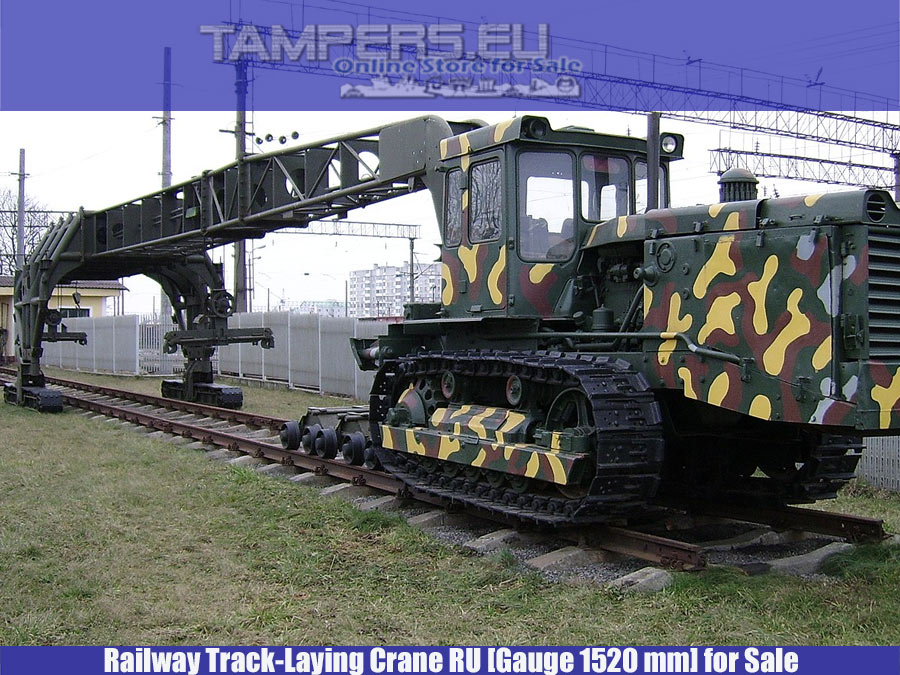

Пътеполагащ ЖП кран с трактор (1989 година, междурелсие: 1520 мм) за Продажба

Visual Inspection of Tamper (terms):
= Broker network TAMPER.EU (active membership, different by Guest): NCND agreement and deposit 1000€
= Broker outside network TAMPER.EU (unregistered): NCND agreement and deposit 2000€
= End buyers, for contact email: sales@tampers.org or contact Head Office - NCND agreement and deposit 1000€
PRICE: Upon Request or Please log in to see the price

Sales information

• Seller: Directly owned - For More Information Call
• Location -  outside Europa, For More Information Call
• Price EXW EU -  is available on request
• TAMPERS.EU commission: YES
• UIC number: No
• Broad Gauge Track: 1520 mm
• Production year: 1989, in conservation

Technical specifications


1.Gauge width, mm 1520
2. Productivity, running m / h:
links with wooden sleepers 300 links with reinforced concrete sleepers 240
3. Load carrying capacity of the track stacker, t:
with the multiplicity of tackle 2 9,0
with the multiplicity of tackle 4 18,0
4.Even lifting speed, m / mission:
with the multiplicity of tackle 2 9.1
with a multiplicity of tackle 4 4.35
5. Height of rise - capturing frames, mm:
with assembly scheme N ° 1 4300-4400
with assembly scheme No. 2 2400-2500
6. Self-propelled track stacker speed, km / h:
on track rails 2.36-3.7 8
on ground 2,36-6,45
when laying the track 2.36
7.Generator:
ECC-83-6M type synchronous, three-phase
power, kVA 37.5
voltage, V 400
8. Cargo winch:
rope force, kN (tf) 22.5 (2.25)
drum diameter, mm 5 20
rope diameter, mm 17.5
motor type MTKV-311-6
power, kW 11
9. traction winch:
drum diameter, mm 335
rope diameter, 15.5 mm
traction force, kN (tf) 17.0 (1.7)
type of electric motor, kW VOAL-5 2-4
power, kW 13
10. Jib crane:
loading capacity, kg 500
lifting speed, m / min 4,2
boom reach, mm 2560
motor type AOL-2-22-6
power, kW 1,1
11. Overall dimensions of the track stacker, mm:
length:
with additional farm section 27480
no additional truss section 25780
with assembly scheme No. 3 29780
width 3 250
height:
according to the first assembly scheme 5 870
according to the second and third assembly schemes 3970
12. Mass (track stacker with tractor), t 31,025

Product information

Producer

Brand

Russia

Model

Railway Track-Laying Crane RU

Year model

1989 year

Chassisnumber

is available on request

Vehicle information

Registration number

is available on request

Weight (kg)

46000

Latest inspection

 2020

REM inspection ( are granted upon request, contact our regional office or agent)

 2020

Transmission

 4 axles- 4 are drive axles /2 bogies/

Engine/Fuel

Engine volume

Caterpillars

Engine output

 -kW

Fuel type

Diesel

Number of fuel tanks

01

Computer controlled tamping

Plasser Computer type

 N/A



Plasser Tamping units

 N/A

Load details

Load dimensions (l/w/h)

L = 29780 mm x W = 3250 mm x H = 5870 mm

Load-lifting capacity: (kg)

4500 kg

Truck details

Cabin

Unknown

Axle type

Unknown

Hydraulics

N/A

Pull-hook

N/A

Accessories

N/A

Euro class

N/A

Suspension

Front shaft

N/A

Drive shaft

N/A

Bogie

N/A

Tractor

Disc

N/A

Locking

N/A

Other information



 GB: Railway Track-Laying Crane UK25/9-18/REMv1.0 D: Railway Track-Laying Crane UK25/9-18/REMv1.0

 Last inspection 2020, last service 2020.

REM inspection 2012-01-29 (are granted upon request, contact our regional office or agent)
