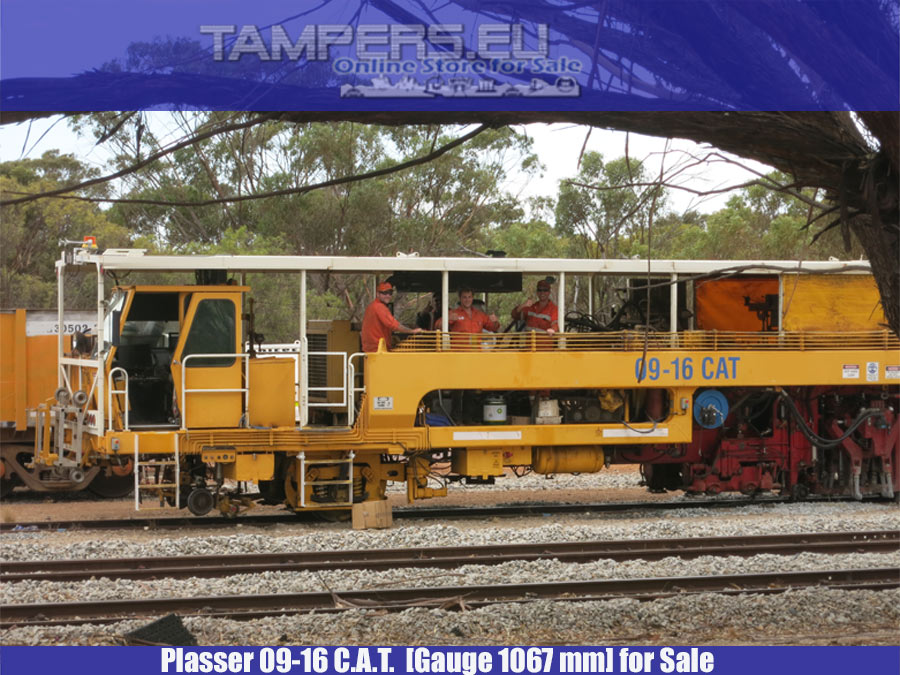

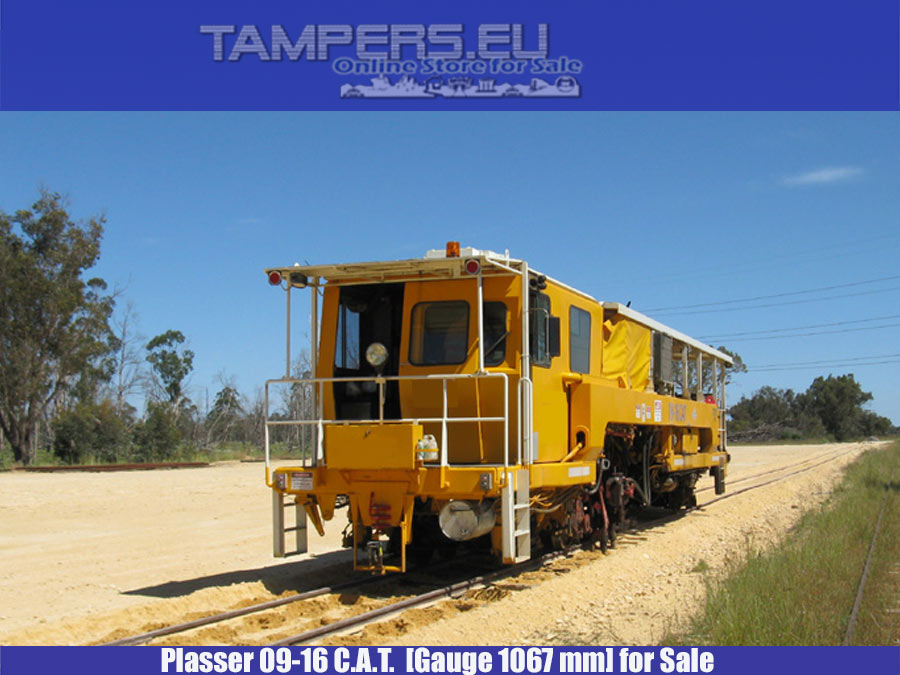

Подбивна ж.п. машина Plasser 09-16 C.A.T. (междурелси 1067 mm) за Продажба

Детайли



(0 reviews)

SKU
SKU20445
Тегло
25000.00 kg
Click here to be notified of price drops of this item

Опции


Warranty/Additional Option

Visual Inspection of Tamper (terms):
= Broker network TAMPER.EU (active membership, different by Guest): NCND agreement and deposit 1000€
= Broker outside network TAMPER.EU (unregistered): NCND agreement and deposit 2000€
= End buyers, for contact email: sales@tampers.org or contact Head Office - NCND agreement and deposit 1000€
PRICE: Upon Request or Please log in to see the price

Sales information

Тechnical condition:  Latest inspection (revision) 2019 (valid revision to 2020: No),
Computer controlled: ALC has been removed (it’s only the processor, that has been removed). Everything else is still there.
Tamping Units: Works, Good mechanical condition. Tamping tynes set (new)
Axles and transmission: Works, Good mechanical condition. Satellite drive and gearbox (new)
Engine: Works, Good mechanical condition

=======================================================================

Production information:

  • The Plasser Continuous Action Tamper 09-16 C.A.T. is a heavy duty, high speed, continuous action production track tamping machine. All track working units are mounted on a separate, self-propelled, satellite frame that is mounted within the 09-16 C.A.T.'s main frame. The 09-16 C.A.T. is standard equipped with fully automatic, computer controlled (AGGS) lifting, leveling and lining systems.
  • FULL Technical specifications and VIDEOS seen below.
  • Computer controlled (ALC+set up for laser): Works perfectly.
  • Tamping units: Works perfectly, after overhaul.
  • Axles and transmission: Works perfectly, after revision.
  • Engine: Works perfectly, after revision.
  • Hydraulics: Works perfectly, after revision and repair.

    Sales information




      The price is FOB Port of Bulgaria or etc.: For Price and More Information Call or or choose from the options box.

    Product information

    Producer

    Brand
    Plasser & Theurer
    Model
    Plasser Continuons Tamper 09-16 C.A.T.
    Year model
    1986*
    Chassisnumber
    is available on request

    Vehicle information

    Registration number
    is available on request
    Weight (kg)
     35000
    Latest inspection
     2020
    REM inspection ( are granted upon request, contact our regional office or agent)
     2020
    Transmission
     2 axles

    Engine/Fuel

    Engine volume
    Caterpillar model CATP-9702, 300 kW
    Engine output
    300 kW
    Fuel type
    Diesel
    Number of fuel tanks
    01

    Computer controlled tamping

    Plasser Computer type
     yes, AGGS

    Plasser Tamping units
     08 pct tamping tools/unit or 16 total tamping tools



    Load details

    Load dimensions (l/w/h)
    L = 16200 mm x W = 2860 mm x H = 3300 mm
    Payload (kg)
    N/A

    Truck details

    Cabin
    Unknown
    Axle type
    Unknown
    Hydraulics
    N/A
    Pull-hook
    N/A
    Accessories
    N/A
    Euro class
    N/A

    Suspension

    Front shaft
    N/A
    Drive shaft
    N/A
    Bogie
    N/A

    Tractor

    Disc
    N/A
    Locking
    N/A

    Other information


    GB: Tamping machine
    D: Stopfmaschine

    Last inspection 2020,

    REM inspection 2020 (are granted upon request, contact our regional office or agent)



    Clicky

The Plasser Continuous Action Tamper 09-16 C.A.T. is a heavy duty, high speed, continuous action production track tamping machine. All track working units are mounted on a separate, self-propelled, satellite frame that is mounted within the 09-16 C.A.T.'s main frame. The 09-16 C.A.T. is standard equipped with fully automatic, computer controlled (AGGS) lifting, leveling and lining systems.

  The year model of the tamper is almost 1988, Rebuilt  1997.
  Computer controlled (AGGS): Works perfectly.
  Tamping units: Works perfectly, after overhaul.
  Axles and transmission: Works perfectly, after revision.
  Engine: Works perfectly, after revision.
  Hydraulics: Works perfectly, after revision and repair.
  REM warranty EU: 01 month
  The price is FOB Port of Bulgaria: For Price and More Information Call.

  Drawing



Specification
Total mass: 35 ton
Broad Gauge Track: 1435 mm
Length over buffers: 16,200 mm
Wheelbase: 10,200 mm
Engine power: Caterpillar model CATP-9702, 300 kW
Travelling speed under own power/towed, max: 80 km/h
Width: 2,860 mm
Height: 3,300 mm
Distance between Axles: 32'9"
Wheel diameter: 28"
Special volume: 1.07 m3/ton
Load per meter of track: 6.5 ton/m
Axle load: 23 ton
Computer controlled: AGGS






*
*
*


Does any possibility to modify become gauge 1067 mm ?

Yes, for an additional fee machine can be modified by Gauge 1435 mm to 1000 mm or Gauge 1065 mm, price and details - Choose Option box.

How to get a quotation about REBUILT 2013 year Plasser Continuons Tamper 09-16C.A.T. (payment option Gauge 1000 mm or 1065 mm)?

To see prices, specifications, types, of railway equipment at our platform, you must register as a client company or signed authorization - client user (enter ID user e-mail/ pass): 1) Load in your browser: www.tampers.org ; 2) Authentication -> press “Sign in”, enter USED ID/Pass; For preparation of a formal REM Offer and/or formal REM Proforma Invoice about railway equipment you are interested in, you have two options: I. Formal request directly to REM sales department via fax: +359-52-319990 or email: web@remtechstroy.org or sale@tampers.org: 1. You must make a formal request for bidding (preparation of proforma invoice) directly to REM Sales Department via fax or email - and indicate the SKU machines code. For example: SKU1785521 for REBUILT 2013 year Plasser Continuons Tamper 09-16 C.A.T. (payment option Gauge 1000 mm or 1065 mm) + Option: Payment option Gauge 1065 mm. 2. Within a few days you will receive a formal REM offer (or REM Proforma Invoice); II. Automatic generation of REM Offer (or receive a REM Proforma Invoice) by CRM platform REMTECHSTROY GROUP Online Store: 1. With log in and password, choose railway equipment that you wish to be quoted; 2. Then click "Add to cart" to add Your shopping cart every railway machine that you wish to be quoted; Example Select first: SKU1785521 or REBUILT 2013 year Plasser Continuons Tamper 09-16 CAT; Select two: Additional Option - Additional option: change from 1435 to 1000mm/1065mm Gauge: +200000.00 Euro Automatically generate your total price! 3. Then in Your shopping cart {View cart}, you must press the button "Checkout", and in the field "Customer notes:" please write if you want an official proforma (unless stated - you receive a formal offer); 4. Finally you must confirm with button "Submit order" to generate an offer (receive a formal REM proforma from REM Sales Department); 5. The CRM Platform automatically generates REM formal offer or within a few days you will receive a formal REM Proforma Invoice; If you have any questions, please ask REM Sale agent: web@remtechstroy.org or sale@tampers.org

I do not see the price of the machine?

For preparation of a formal REM Offer and/or formal REM Proforma Invoice about railway equipment you are interested in, you have two options: see FAQ Answer 2. To be able to access our full prices, delivery terms, catalogs, brochures, technical specifications, videos, certificates, photos and pdf, you have to be registered, logged in and be a member of the "PRO Membership levels - www.tampers.org": - End customer PRO - owner of railway mechanization; - REM Agent/Dealer *P&T* (Wholesale I); - REM Agent/Dealer LT *P&T* (Wholesale I); - Wholesale PRO *P&T* (Wholesale II); - REM Agent/Dealer UA *P&T* (Wholesale III); - Wholesale KZ *P&T* (Wholesale III); - Customer KZ *P&T*; - REM Agent/Dealer {not EU} (Wholesale I); - Wholesale PRO {not EU} (Wholesale II); - Wholesale {not EU} (Wholesale III); - Customer {not EU}.
