Swimmer Delivery Vehicle {Demilitarized underwater vehicle} for Sale - Location in outside Europa
Designed and manufactured for military special forces, the SPECIAL FORCES is a hybrid Surface and Underwater Swimmer Delivery Vehicle
capable of 35kts on the surface , and 5kts underwater.
The SPECIAL FORCES is designed and manufactured as an advanced high speed pleasure craft for 4 to 6 SF divers. The main design and construction provides the following modes of operation:
Surface mode at high speed.
Semi-submerged mode at low speed.
Submerged mode at low speed.
Parked on the sea floor.
The power propulsion system is based on a water-cooled Italian MTU 270kW (3650hp) diesel engine with a water jet Rolls-Royse propulsion system for surface and semi-submerged modes.
The underwater system comprises advanced thrusters powered by 12V Lithium Ferro batteries. The LIFe battery system has an integrated BMS (battery monitoring system). An extra battery pod may be added for longer submerged endurance.
An air-compressed system provides the craft with air for the underwater mode. A hydraulic system provides the craft with hydraulic power for subsystems like security valves and telescopic operation of sensor mast and snorkel.

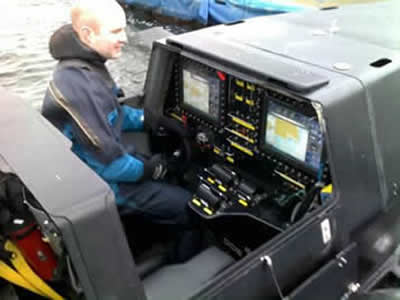

The Steering-Information-Navigation-Communication System (SINC) is an advanced aid to the pilot and co-pilot in order to operate the craft in all modes. The control functions of the craft are governed by a digital Programmable Logic Controller (PLC) and a Canbus system.
The BIBS system provides the divers with an emergency breathing capacity.
The craft is equipped with strong points for launching and recovering by crane and may also be operated by an onboard sledge.
Maximum speed on surface 35 knots.
Speed at full payload- cruising on surface 25 knots.
semi-submerged 5 knots, and submerged 5 knots.
Range- on surface or semi-submerged 150 Nm.
Range submerged 8 Nm.
Range submerged with extra battery pack 15 Nm.
Operating depth with divers 40 m.
Payload (maximum incl. fuel) 500 kg.
Max recommended sea state for operation 3.
Dimensions:
Length 8.0m.
Beam 2.0m.
Height to top of cabin 1.3m
Max height to top of activated snorkel and sensor mast 2.3m
Lightweight 2,800 kg
Standard payload Crew and cargo 500 kg, Diesel fuel 250 kg.
Crew (maximum) 4-6 divers.
Diesel engine 235kW or 120kW.
Propulsion system Water jet or shaft drive.
Diesel fuel capacity 300 litres.
Underwater propulsion system Prop or Water jet.
Battery pack (basic system) LIFe (12,5kWh).
Compressed Air capacity 1x50 litres + 2x4 litres@ 300 bars.
BIBS 4-6 x 6,7 litres @ 300 bars.
In the SPECIAL FORCES Carrier mode, the SF is a surface and sub-surface vessel designed to transport divers with equipment (Special Operations or EOD Operations), autonomous operated vehicles (MCM Operations), remotely operated weapon station guided by electro-optical sensors (Fire Support) or other required systems. The SPECIAL FORCES SF operates in a number of different roles.

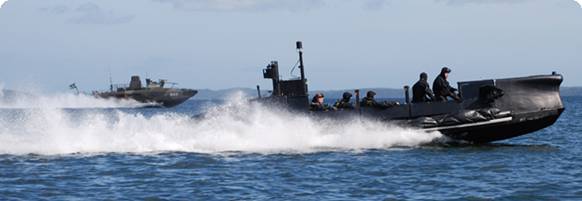

- on surface at high speed,30+ knots
- semi-submerged with a limited signature, diesel or electrical propulsion

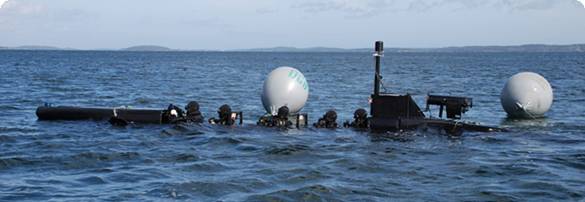

- submerged in a fully flooded state propelled by electrical thrusters powered by a sophisticated battery
- parked on the sea floor
The SPECIAL FORCES Carrier is the basic underwater vehicle and operates with a pilot and a co-pilot. Three different modules installed on the Carrier provide the different applications required:
- The SPECIAL FORCES – Swimmer Delivery Vehicle for SOP missions
- The SPECIAL FORCES – Autonomous Under- water Vehicle for MCM missions.
- The SPECIAL FORCES – Remote Weapon Station Vehicle for Fire Support.
TRIALS AND TRAINING:
A three-week training package for operators and maintainers is provided.
