NEW Volvo L150G Wheel loadrer Price: 240000 EUR

Ново Volvo L150G Челен Товарач за Продажба

Price: 240000 EUR

NEW Volvo L150G Wheel loadrer

F = 4320 mm;
L (E bg) = 5870 mm;
G (A bg) = 2880 mm at 45 degrees;

Description

* without VAT

Selected Dimensions

Bucket
G. Dump Clearance at Max Raise	9.4 ft in	2880 mm
Dimensions
A. Length with Bucket on Ground	28.9 ft in	8800 mm
B. Width Over Tires	9.7 ft in	2960 mm
C. Height to Top of Cab	11.7 ft in	3570 mm
D. Wheelbase	11.6 ft in	3550 mm
E. Ground Clearance	1.5 ft in	470 mm
F. Hinge Pin - Max Height	14.2 ft in	4320 mm
H. Reach at Max Lift and Dump	4.4 ft in	1350 mm
L. Max Height	ft in	5870 mm

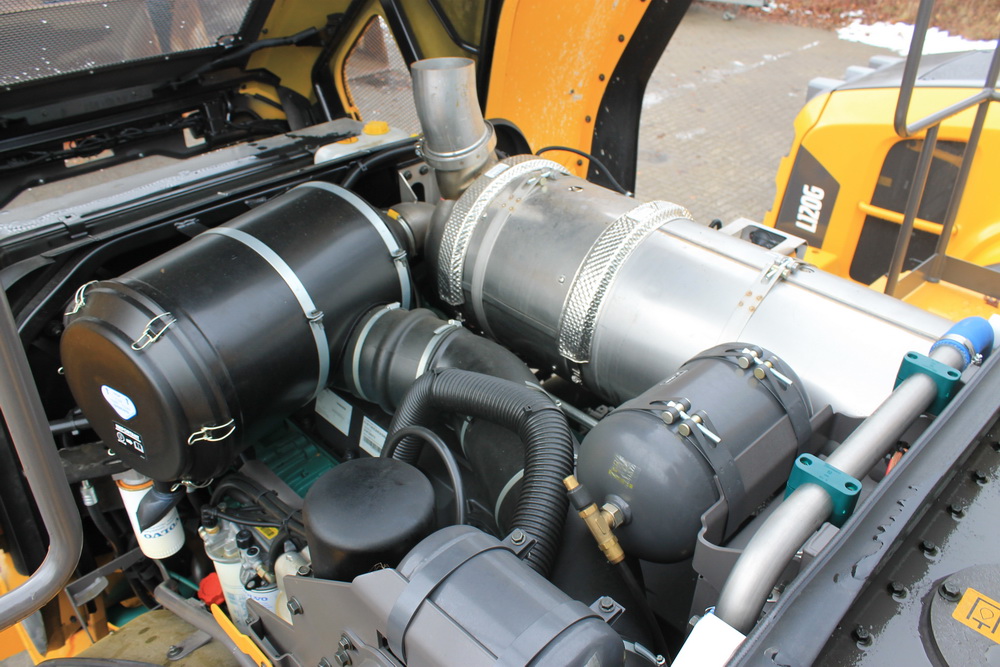

Engine
Make	Volvo
Model	D13H-E
Net Power	295 hp	220 kw
Gross Power	295 hp	220 kw
Power Measured @	1300 rpm
Displacement	12.8 cu in	0.21 L
Torque Measured @	1050 rpm
Number of Cylinders	6
Max Torque	1380 lb ft	1871 Nm
Aspiration	Turbocharged
Operational
Operating Weight	52205.5 lb	24490 kg
Fuel Capacity	88.5 gal	335 L
Hydrauilc System Fluid Capacity	41.2 gal	156 L
Engine Oil Fluid Capacity	13.2 gal	50 L
Cooling System Fluid Capacity	12.2 gal	46 L
Transmission Fluid Capacity	12.7 gal	48 L
Front Axle/Diff Fluid Capacity	11.9 gal	45 L
Rear Axle/Diff Fluid Capacity	14.5 gal	55 L
Static Tipping Weight	38823.4 lb	17610 kg
Turning Radius	24.2 ft in	7375 mm
Operating Voltage	24 V
Alternator Supplied Amperage	80 amps

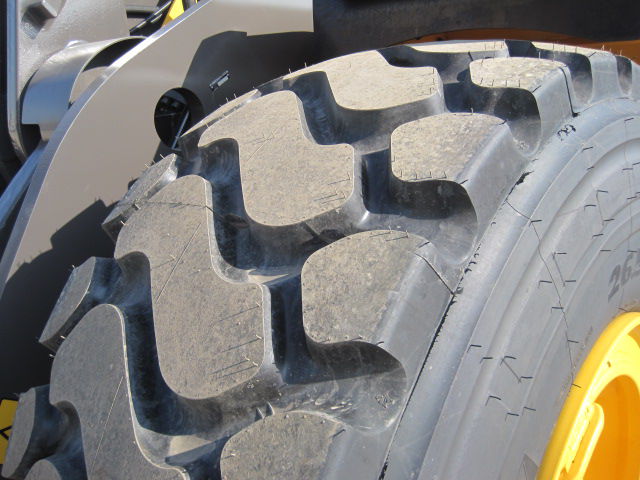

Tire Size	26.5 R25 L3
Transmission
Type	Volvo HTL221
Number of Forward Gears	4
Number of Reverse Gears	4
Max Speed - Forward	23.6 mph	38 km/h
Max Speed - Reverse	23.6 mph	38 km/h
Hydraulic System
Relief Valve Pressure	4496.2 psi	31000 kPa
Pump Flow Capacity	53.4 gal/min	202 L/min
Raise Time	5.9 sec
Dump Time	2 sec
Lower Time	3.7 sec
Bucket
Dump Clearance at Max Raise	9.4 ft in	2880 mm
Bucket Width	10.6 ft in	3660 mm
Bucket Capacity - heaped	5.2 yd3	4.2 m3
Dimensions
Length with Bucket on Ground	28.9 ft in	8800 mm
Width Over Tires	9.7 ft in	2960 mm
Height to Top of Cab	11.7 ft in	3570 mm
Ground Clearance	1.5 ft in	470 mm
Wheelbase	11.6 ft in	3550 mm
Hinge Pin - Max Height	14.2 ft in	4320 mm
Reach at Max Lift and Dump	4.4 ft in	1350 mm
