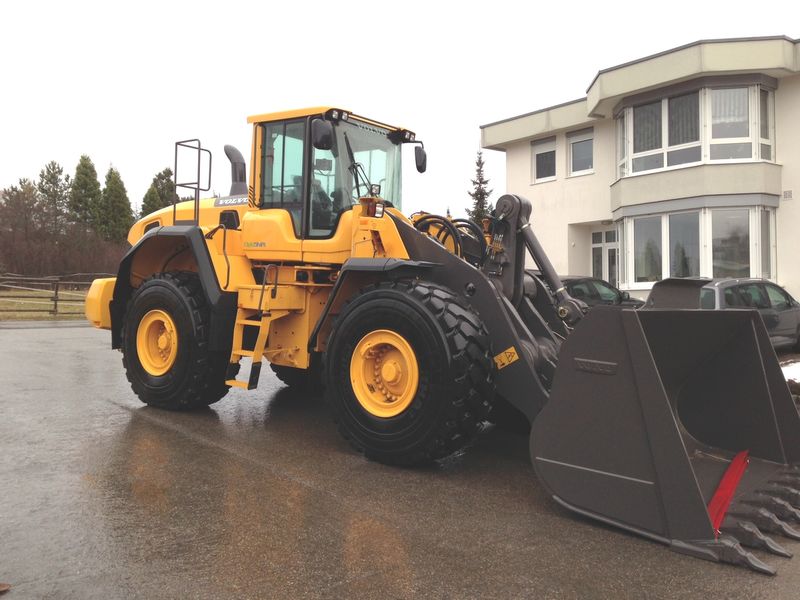

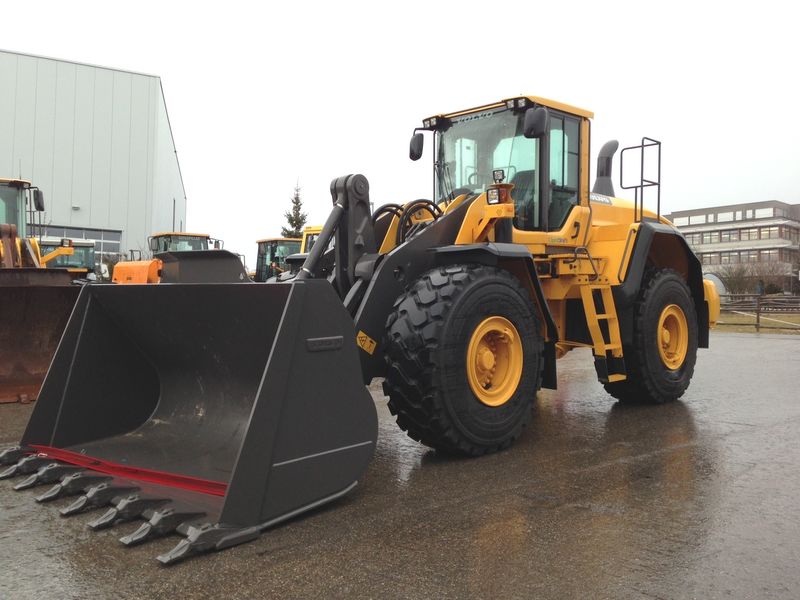

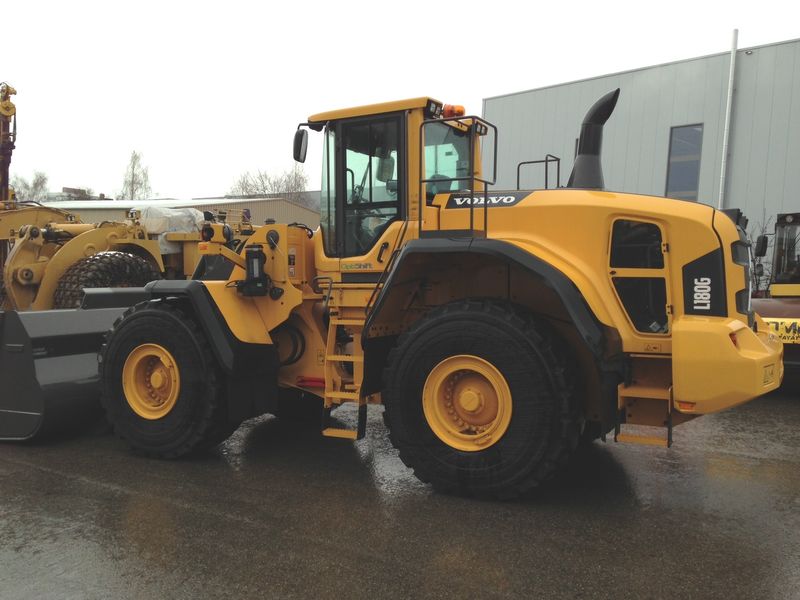

NEW Volvo L180G Wheel loader Price 260000 EUR

Ново Volvo L180G Челен Товарач в Продажба

Price: 260000 EUR

NEW Volvo L180G Wheel loader

F = 4470 mm;
L (E bg) = 6120 mm;
G (A bg) = 2970 mm at 45 degrees;

Description

* without VAT

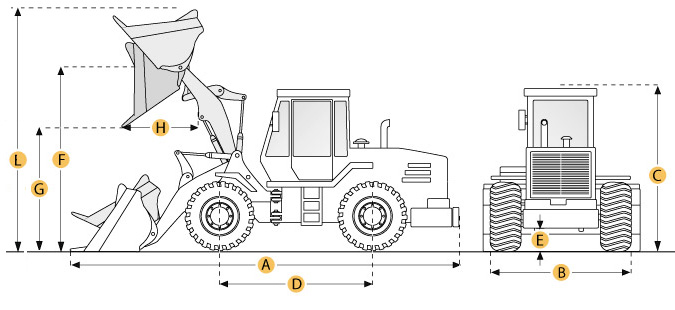

Selected Dimensions

Bucket
G. Dump Clearance at Max Raise	9.7 ft in	2970 mm
Dimensions
A. Length with Bucket on Ground	29.6 ft in	9010 mm
B. Width Over Tires	9.7 ft in	2960 mm
C. Height to Top of Cab	11.7 ft in	3580 mm
D. Wheelbase	11.6 ft in	3550 mm
E. Ground Clearance	1.6 ft in	480 mm
F. Hinge Pin - Max Height	14.7 ft in	4470 mm
H. Reach at Max Lift and Dump	4.6 ft in	1410 mm
L. Max Height	ft in	6120 mm

Engine
Make	Volvo
Model	D13H-E
Net Power	328 hp	244.6 kw
Gross Power	330 hp	246.1 kw
Power Measured @	1300 rpm
Displacement	781.1 cu in	12.8 L
Torque Measured @	1000 rpm
Number of Cylinders	6
Max Torque	1497 lb ft	2029.7 Nm
Aspiration	Turbocharged
Operational
Operating Weight	58334.3 lb	26460 kg
Fuel Capacity	88.5 gal	335 L
Hydrauilc System Fluid Capacity	41.2 gal	156 L
Engine Oil Fluid Capacity	13.2 gal	50 L
Cooling System Fluid Capacity	12.2 gal	46 L
Transmission Fluid Capacity	12.7 gal	48 L
Front Axle/Diff Fluid Capacity	11.9 gal	45 L
Rear Axle/Diff Fluid Capacity	14.5 gal	55 L
Static Tipping Weight	46473.4 lb	21080 kg
Turning Radius	24.4 ft in	7440 mm
Operating Voltage	24 V
Alternator Supplied Amperage	80 amps

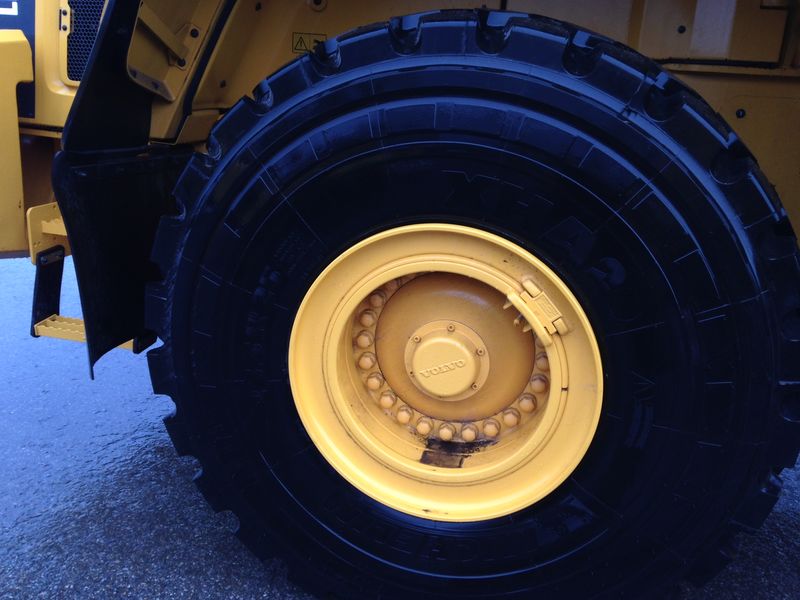

Tire Size	26.5 R25 L3
Transmission
Type	Volvo HTL 221
Number of Forward Gears	4
Number of Reverse Gears	4
Max Speed - Forward	23.6 mph	38 km/h
Max Speed - Reverse	23.6 mph	38 km/h
Hydraulic System
Relief Valve Pressure	4496.2 psi	31000 kPa
Pump Flow Capacity	53.4 gal/min	202 L/min
Raise Time	6.4 sec
Dump Time	1.8 sec
Lower Time	3.3 sec
Bucket
Dump Clearance at Max Raise	9.7 ft in	2970 mm
Bucket Width	10.6 ft in	3230 mm
Bucket Capacity - heaped	5.8 yd3	4.4 m3
Dimensions
Length with Bucket on Ground	29.6 ft in	9010 mm
Width Over Tires	9.7 ft in	2960 mm
Height to Top of Cab	11.7 ft in	3580 mm
Ground Clearance	1.6 ft in	480 mm
Wheelbase	11.6 ft in	3550 mm
Hinge Pin - Max Height	14.7 ft in	4470 mm
Reach at Max Lift and Dump	4.6 ft in	1410 mm
