Универсална Стрелкова Подбивна ж.п. машина Minima-2

Plasser Minima-2

The Plasser Crossing Tamper is minima 2 type is a small straight track machine suitable for train, tram and metro tracks. The 1435 mm gauge tamping machine is suitable for levelling, elevation, alignment and tamping of switches, crossings and tracks.
The Minima machine is transported by truck. A minima-2 can tamp both normal and double sleepers..

Sales information

• Seller - REMTECHNOLODY LTD
• Location - EU, EXW Western Europe

Description

* without VAT

Product information

Producer

Brand

Plasser & Theurer

Model

Manima-2

Year model

1980-85

Chassisnumber

is available on request

Vehicle information

Registration number

is available on request

Weight (kg)

7600

Latest inspection

10.06.2012

REM inspection ( are granted upon request, contact our regional office or agent)

19.06.2012

Transmission

Hydraulic.drive on axle (front)

Engine/Fuel

Engine volume

HATZ 4L41C

Engine output

47 kW 2300 rpm

Fuel type

 Diesel

Number of fuel tanks

01

Load details

Load dimensions (l/w/h)

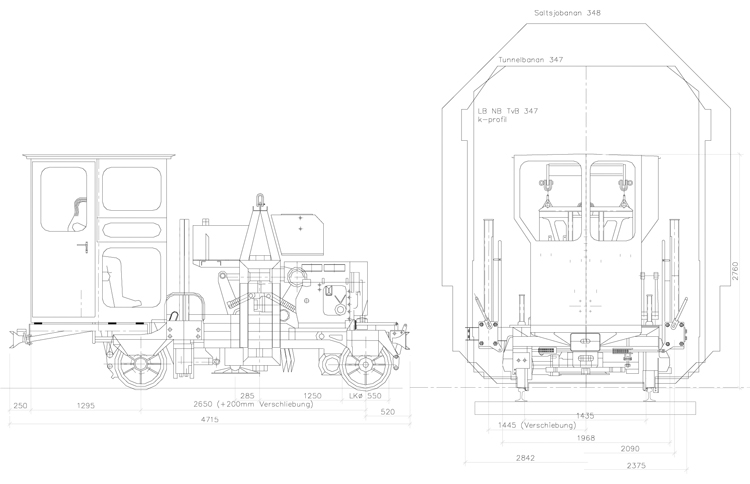

L = 4,717/ W = 2,842 adjustable 2,375/ H = 2,760 mm

Payload (kg)

N/A

Truck details

Cabin

Unknown

Axle type

Unknown

Hydraulics

N/A

Pull-hook

N/A

Accessories

N/A

Euro class

N/A

Suspension

Front shaft

N/A

Drive shaft

N/A

Bogie

N/A

Tractor

Disc

N/A

Locking

N/A

Other information



GB: Tamping machine

D: Универсална Стрелкова Подбивна ж.п. машина Minima-2
 Last inspection 2012-06-10, last service 2012-06-19.

REM inspection 2012-06-19 (are granted upon request, contact our regional office or agent)

The Plasser Crossing Tamper is minima 2s type is a small straight track machine suitable for train, tram and metro tracks. The 1435 mm gauge tamping machine is suitable for levelling, elevation, alignment and tamping of switches, crossings and tracks.
The Minima machine is transported by truck. A minima-2S can tamp both normal and double sleepers..

The year construction: 1980-85
Motor hours: ----
The documentation: available by P&T on delivery
Operators manual: Available
