СЛЕД КАПИТАЛЕН РЕМОНТ 2013* година Подбивна ж.п. машина Plasser 09-16 C.A.T. (платена опция междурелси 1000 mm или 1065 mm)

Детайли



(0 reviews)

SKU
SKU1785521
Тегло
25000.00 kg
Click here to be notified of price drops of this item

Опции


Warranty/Additional Option

Sales information

  • Seller - REMTECHNOLODGY LTD
  • Location - outside Europe

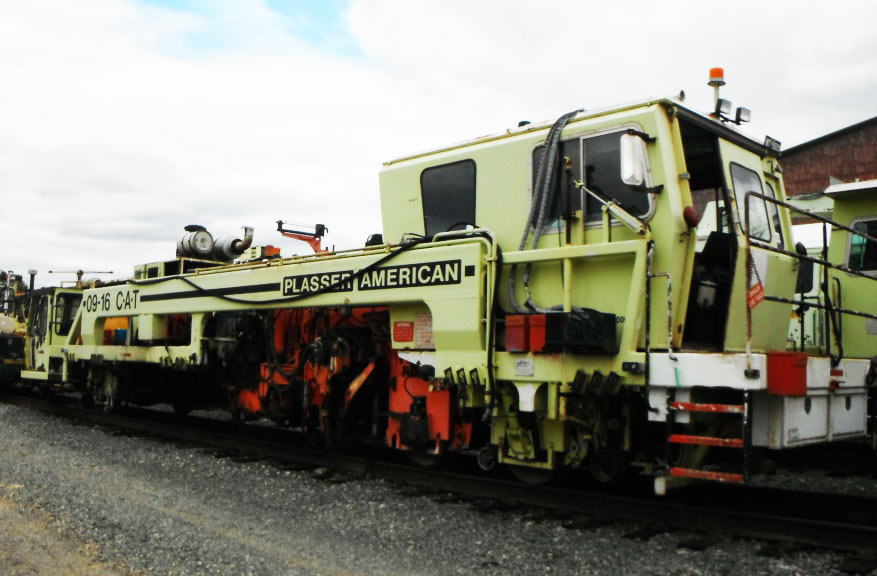

  • The Plasser Continuous Action Tamper 09-16 C.A.T. is a heavy duty, high speed, continuous action production track tamping machine. All track working units are mounted on a separate, self-propelled, satellite frame that is mounted within the 09-16 C.A.T.'s main frame. The 09-16 C.A.T. is standard equipped with fully automatic, computer controlled (AGGS) lifting, leveling and lining systems.
  • FULL Technical specifications and VIDEOS seen below.



  • USED OPTION: The year model of the tamper is 1988, Rebuilt 1997.

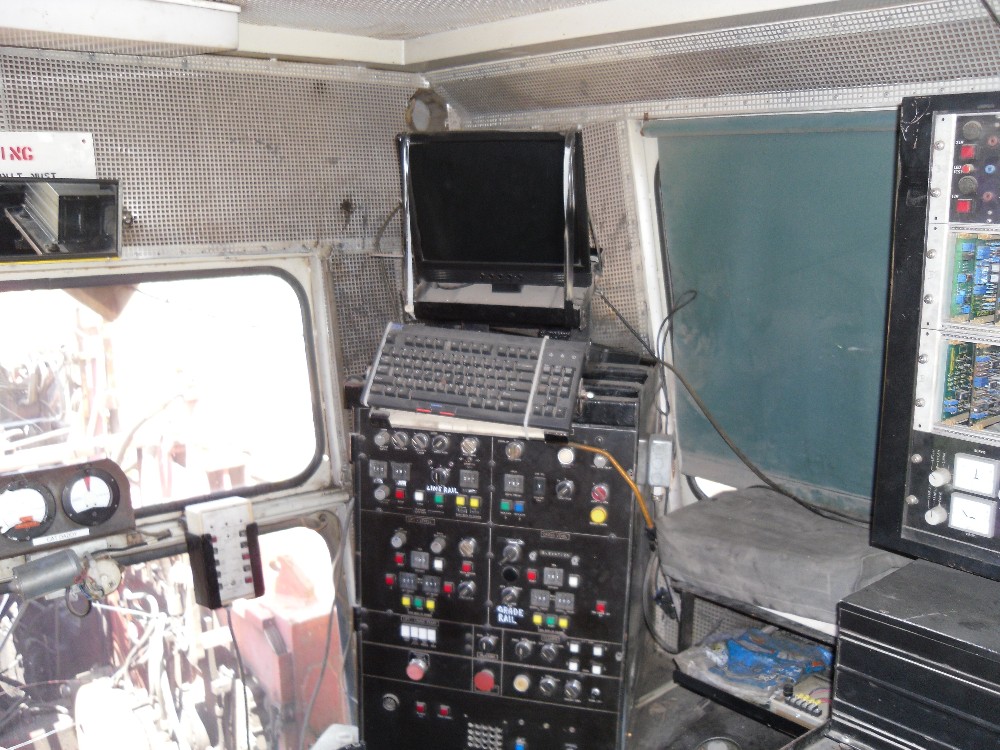

  • Computer controlled (AGGS): Works perfectly.
  • Tamping units: Works perfectly, after overhaul.
  • Axles and transmission: Works perfectly, after revision.
  • Engine: Works perfectly, after revision.
  • Hydraulics: Works perfectly, after revision and repair.


  The price is FOB Port of Bulgaria or etc.: For Price and More Information Call or or choose from the options box.

  +Additional option REM Rebuilt: The rebuild was in 2013 (REM plant). REM warranty: 12 months

Product information

Producer

Brand
Plasser & Theurer
Model
Plasser Continuons Tamper 09-16 C.A.T.
Year model
1988, Rebuilt 1997/  Additional option REM Rebuilt 2013 year
Chassisnumber
is available on request

Vehicle information

Registration number
is available on request
Weight (kg)
 35000
Latest inspection
 15.06.2010
REM inspection ( are granted upon request, contact our regional office or agent)
 20.03.2013
Transmission
 2 axles

Engine/Fuel

Engine volume
Caterpillar model CATP-9702, 300 kW
Engine output
300 kW
Fuel type
Diesel
Number of fuel tanks
01

Computer controlled tamping

Plasser Computer type
 yes, AGGS

Plasser Tamping units
 08 pct tamping tools/unit or 16 total tamping tools



Load details

Load dimensions (l/w/h)
L = 16200 mm x W = 2860 mm x H = 3300 mm
Payload (kg)
N/A

Truck details

Cabin
Unknown
Axle type
Unknown
Hydraulics
N/A
Pull-hook
N/A
Accessories
N/A
Euro class
N/A

Suspension

Front shaft
N/A
Drive shaft
N/A
Bogie
N/A

Tractor

Disc
N/A
Locking
N/A

Other information


GB: Tamping machine
D: Stopfmaschine

Last inspection 15.06.2010,

REM inspection 20.03.2013 (are granted upon request, contact our regional office or agent)



Web Analytics

Clicky

The Plasser Continuous Action Tamper 09-16 C.A.T. is a heavy duty, high speed, continuous action production track tamping machine. All track working units are mounted on a separate, self-propelled, satellite frame that is mounted within the 09-16 C.A.T.'s main frame. The 09-16 C.A.T. is standard equipped with fully automatic, computer controlled (AGGS) lifting, leveling and lining systems.

  The year model of the tamper is almost 1988, Rebuilt  1997.
  Computer controlled (AGGS): Works perfectly.
  Tamping units: Works perfectly, after overhaul.
  Axles and transmission: Works perfectly, after revision.
  Engine: Works perfectly, after revision.
  Hydraulics: Works perfectly, after revision and repair.
  REM warranty EU: 01 month
  The price is FOB Port of Bulgaria: For Price and More Information Call.

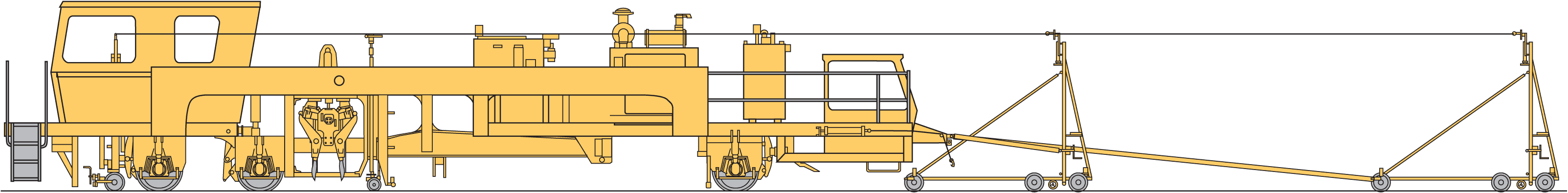

  Drawing



Specification
Total mass: 35 ton
Broad Gauge Track: 1435 mm
Length over buffers: 16,200 mm
Wheelbase: 10,200 mm
Engine power: Caterpillar model CATP-9702, 300 kW
Travelling speed under own power/towed, max: 80 km/h
Width: 2,860 mm
Height: 3,300 mm
Distance between Axles: 32'9"
Wheel diameter: 28"
Special volume: 1.07 m3/ton
Load per meter of track: 6.5 ton/m
Axle load: 23 ton
Computer controlled: AGGS






*
*
*


Does any possibility to modify become gauge 1067 mm ?

Yes, for an additional fee machine can be modified by Gauge 1435 mm to 1000 mm or Gauge 1065 mm, price and details - Choose Option box.

How to get a quotation about REBUILT 2013 year Plasser Continuons Tamper 09-16C.A.T. (payment option Gauge 1000 mm or 1065 mm)?

To see prices, specifications, types, of railway equipment at our platform, you must register as a client company or signed authorization - client user (enter ID user e-mail/ pass): 1) Load in your browser: www.tampers.org ; 2) Authentication -> press “Sign in”, enter USED ID/Pass; For preparation of a formal REM Offer and/or formal REM Proforma Invoice about railway equipment you are interested in, you have two options: I. Formal request directly to REM sales department via fax: +359-52-319990 or email: web@remtechstroy.org or sale@tampers.org: 1. You must make a formal request for bidding (preparation of proforma invoice) directly to REM Sales Department via fax or email - and indicate the SKU machines code. For example: SKU1785521 for REBUILT 2013 year Plasser Continuons Tamper 09-16 C.A.T. (payment option Gauge 1000 mm or 1065 mm) + Option: Payment option Gauge 1065 mm. 2. Within a few days you will receive a formal REM offer (or REM Proforma Invoice); II. Automatic generation of REM Offer (or receive a REM Proforma Invoice) by CRM platform REMTECHSTROY GROUP Online Store: 1. With log in and password, choose railway equipment that you wish to be quoted; 2. Then click "Add to cart" to add Your shopping cart every railway machine that you wish to be quoted; Example Select first: SKU1785521 or REBUILT 2013 year Plasser Continuons Tamper 09-16 CAT; Select two: Additional Option - Additional option: change from 1435 to 1000mm/1065mm Gauge: +200000.00 Euro Automatically generate your total price! 3. Then in Your shopping cart {View cart}, you must press the button "Checkout", and in the field "Customer notes:" please write if you want an official proforma (unless stated - you receive a formal offer); 4. Finally you must confirm with button "Submit order" to generate an offer (receive a formal REM proforma from REM Sales Department); 5. The CRM Platform automatically generates REM formal offer or within a few days you will receive a formal REM Proforma Invoice; If you have any questions, please ask REM Sale agent: web@remtechstroy.org or sale@tampers.org

I do not see the price of the machine?

For preparation of a formal REM Offer and/or formal REM Proforma Invoice about railway equipment you are interested in, you have two options: see FAQ Answer 2. To be able to access our full prices, delivery terms, catalogs, brochures, technical specifications, videos, certificates, photos and pdf, you have to be registered, logged in and be a member of the "PRO Membership levels - www.tampers.org": - End customer PRO - owner of railway mechanization; - REM Agent/Dealer *P&T* (Wholesale I); - REM Agent/Dealer LT *P&T* (Wholesale I); - Wholesale PRO *P&T* (Wholesale II); - REM Agent/Dealer UA *P&T* (Wholesale III); - Wholesale KZ *P&T* (Wholesale III); - Customer KZ *P&T*; - REM Agent/Dealer {not EU} (Wholesale I); - Wholesale PRO {not EU} (Wholesale II); - Wholesale {not EU} (Wholesale III); - Customer {not EU}.
