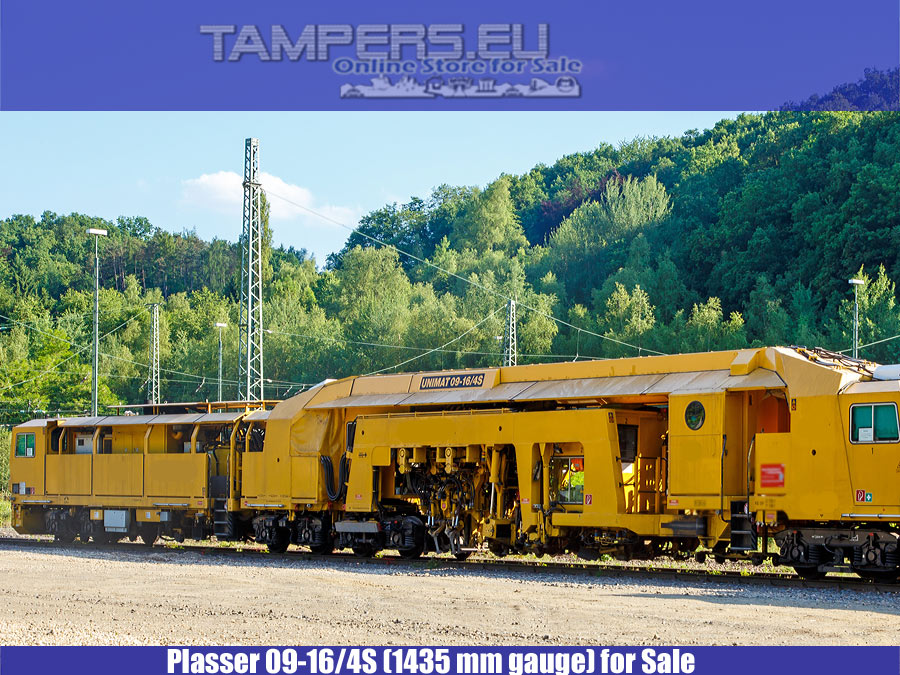

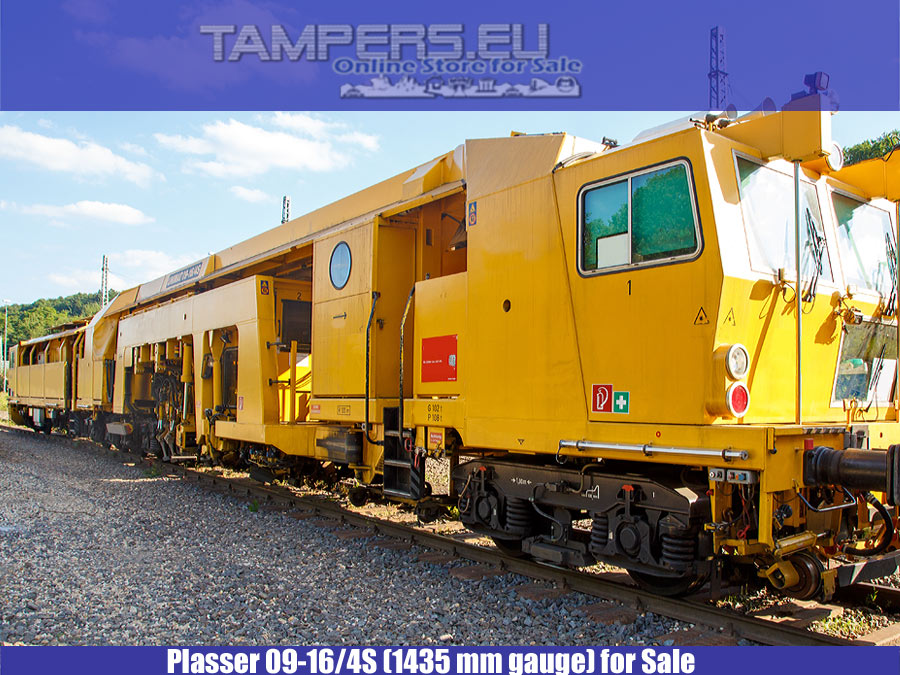

Подбивна ж.п. машина Plasser UNIMAT 09-16/4S (Производство 1999 година, междурелсие 1000 mm) за Продажба

Visual Inspection of Tamper (terms):
= Broker network TAMPER.EU (active membership, different by Guest): NCND agreement and deposit 1000€
= Broker outside network TAMPER.EU (unregistered): NCND agreement and deposit 2000€
= End buyers, for contact email: sales@tampers.org or contact Head Office - NCND agreement and deposit 500€
PRICE: Upon Request or Please log in to see the price

Sales information

Тechnical condition:  Super, Latest inspection (revision) 2019 (valid revision to - yes),
Computer controlled: Works,
Tamping units: Works, Good mechanical condition
Axles and transmission: Works, Good mechanical condition
Engine: Works, Good mechanical condition

=======================================================================

  •

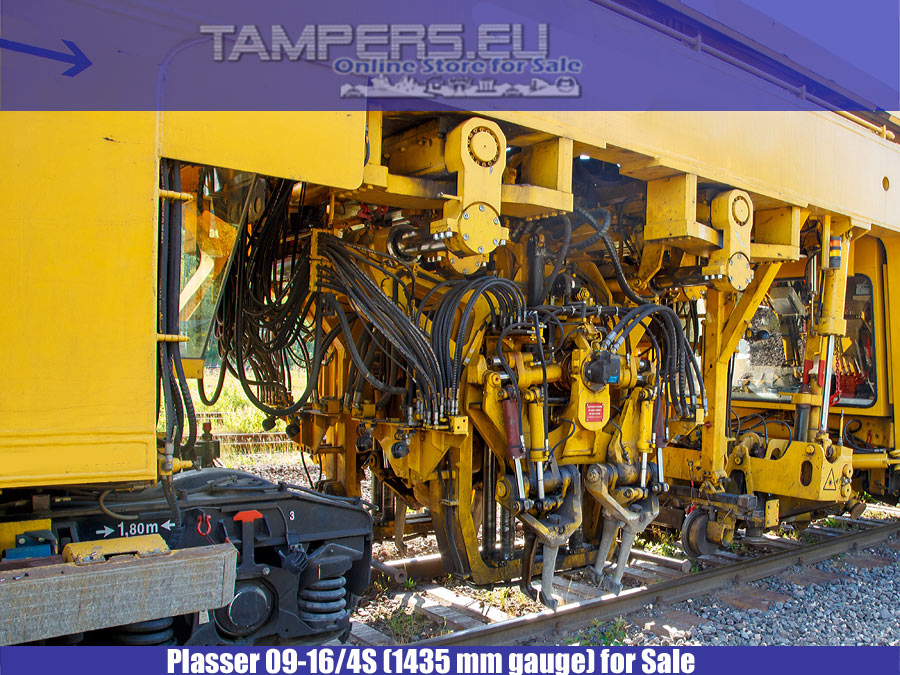

    • The four tamping units can be rotated, individually pushed to the side and therefore optimally positioned before each tamping operation
    • The outer-lying units are laterally extended with horizontal telescopic guide pillars for tamping long sleepers (4-line tamping)
    • Continuous travel and cyclic tamping far out into the area of the points
    • Full scheduled points-maintenance is implemented with three-line lifting and four-line tamping
    • Automatic additional equipment ensures that the third line is lifted
    • Directional laser for extending the measurement basis in the straight sections
    • 6-channel recorder for documenting track position and quality of performance
    • Vibrating compactor
    • Automatic master computer ALC with EM-SAT data processing
    • USED OPTION: The year model of the tamper is 1999.
    • Computer controlled (ALC): Works perfectly.
    • Tamping units: Works perfectly, after overhaul.
    • Axles and transmission: Works perfectly, after revision.
    • Engine: Works perfectly, after revision.
    • Hydraulics: Works perfectly, after revision and repair.
  • Functional characteristics






      The price is FOB Port of Bulgaria or etc.: For Price and More Information Call or choose from the options box.



    Product information

    Producer

    Brand
    Plasser & Theurer
    Model
    Plasser UNIMAT 09-16/4S
    Year model
    1999
    Chassisnumber
    is available on request

    Vehicle information

    Registration number
    is available on request
    Weight (kg)
     123000
    Latest revision:
     02.2019 (valid to 02-2021)
    REM inspection ( are granted upon request, contact our regional office or agent)
     20.01.2019
    Transmission
     2 axles

    Engine/Fuel

    Engine volume
    Caterpillar model, 507 kW
    Engine output
    507 kW
    Fuel type
    Diesel
    Number of fuel tanks
    01

    Computer controlled tamping

    Plasser Computer type
     yes, ALC

    Plasser Tamping units
     08 pct tamping tools/unit or 16 total tamping tools



    Load details

    Load dimensions (l/w/h)
    L = 33200 mm x W = 3000* mm x H = 4125 mm
    Payload (kg)
    N/A

    Truck details

    Cabin
    Unknown
    Axle type
    Unknown
    Hydraulics
    N/A
    Pull-hook
    N/A
    Accessories
    N/A
    Euro class
    N/A

    Suspension

    Front shaft
    N/A
    Drive shaft
    N/A
    Bogie
    N/A

    Tractor

    Disc
    N/A
    Locking
    N/A

    Other information


    Last revision 02-2019,



    Clicky

*
*
*


Does any possibility to modify become gauge 1067 mm ?

Yes, for an additional fee machine can be modified by Gauge 1435 mm to 1000 mm or Gauge 1065 mm, price and details - Choose Option box.

How to get a quotation about REBUILT 2013 year Plasser Continuons Tamper 09-16C.A.T. (payment option Gauge 1000 mm or 1065 mm)?

To see prices, specifications, types, of railway equipment at our platform, you must register as a client company or signed authorization - client user (enter ID user e-mail/ pass): 1) Load in your browser: www.tampers.org ; 2) Authentication -> press “Sign in”, enter USED ID/Pass; For preparation of a formal REM Offer and/or formal REM Proforma Invoice about railway equipment you are interested in, you have two options: I. Formal request directly to REM sales department via fax: +359-52-319990 or email: web@remtechstroy.org or sale@tampers.org: 1. You must make a formal request for bidding (preparation of proforma invoice) directly to REM Sales Department via fax or email - and indicate the SKU machines code. For example: SKU1785521 for REBUILT 2013 year Plasser Continuons Tamper 09-16 C.A.T. (payment option Gauge 1000 mm or 1065 mm) + Option: Payment option Gauge 1065 mm. 2. Within a few days you will receive a formal REM offer (or REM Proforma Invoice); II. Automatic generation of REM Offer (or receive a REM Proforma Invoice) by CRM platform REMTECHSTROY GROUP Online Store: 1. With log in and password, choose railway equipment that you wish to be quoted; 2. Then click "Add to cart" to add Your shopping cart every railway machine that you wish to be quoted; Example Select first: SKU1785521 or REBUILT 2013 year Plasser Continuons Tamper 09-16 CAT; Select two: Additional Option - Additional option: change from 1435 to 1000mm/1065mm Gauge: +200000.00 Euro Automatically generate your total price! 3. Then in Your shopping cart {View cart}, you must press the button "Checkout", and in the field "Customer notes:" please write if you want an official proforma (unless stated - you receive a formal offer); 4. Finally you must confirm with button "Submit order" to generate an offer (receive a formal REM proforma from REM Sales Department); 5. The CRM Platform automatically generates REM formal offer or within a few days you will receive a formal REM Proforma Invoice; If you have any questions, please ask REM Sale agent: web@remtechstroy.org or sale@tampers.org

I do not see the price of the machine?

For preparation of a formal REM Offer and/or formal REM Proforma Invoice about railway equipment you are interested in, you have two options: see FAQ Answer 2. To be able to access our full prices, delivery terms, catalogs, brochures, technical specifications, videos, certificates, photos and pdf, you have to be registered, logged in and be a member of the "PRO Membership levels - www.tampers.org": - End customer PRO - owner of railway mechanization; - REM Agent/Dealer *P&T* (Wholesale I); - REM Agent/Dealer LT *P&T* (Wholesale I); - Wholesale PRO *P&T* (Wholesale II); - REM Agent/Dealer UA *P&T* (Wholesale III); - Wholesale KZ *P&T* (Wholesale III); - Customer KZ *P&T*; - REM Agent/Dealer {not EU} (Wholesale I); - Wholesale PRO {not EU} (Wholesale II); - Wholesale {not EU} (Wholesale III); - Customer {not EU}.
