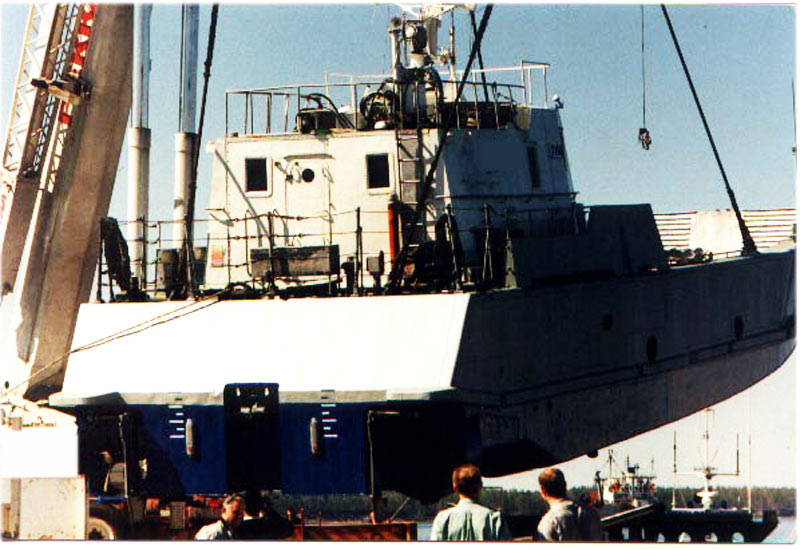

Ships hull is made of unique aluminium A– magnesium combination AMG A– 1615T which makes the ship all most unsinkable
Displacement (tons):
Standard:
61
Full load:
99,7
Dimensions (m):
Length:
25,65
Beam:
5,66
Draft:
1,52
Speed (kts):
30
Range:
600 nm (12 kts), 100 nm (30 kts)
Autonomy (days):
1
Propulsion:

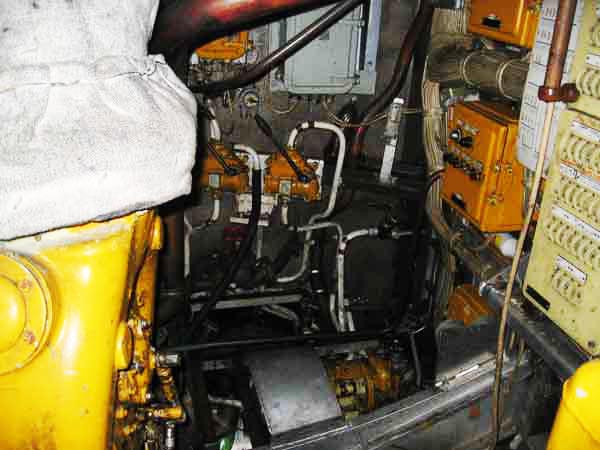

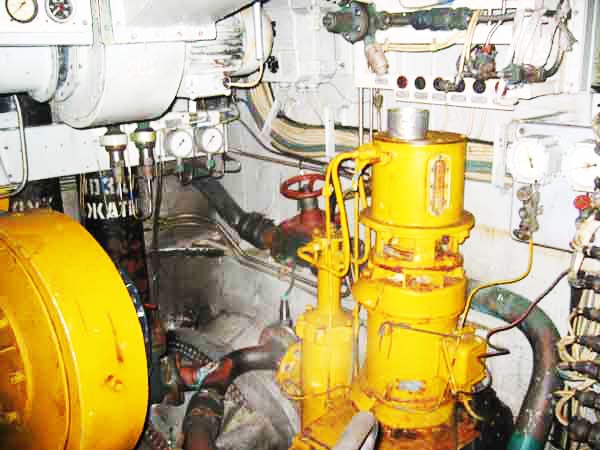

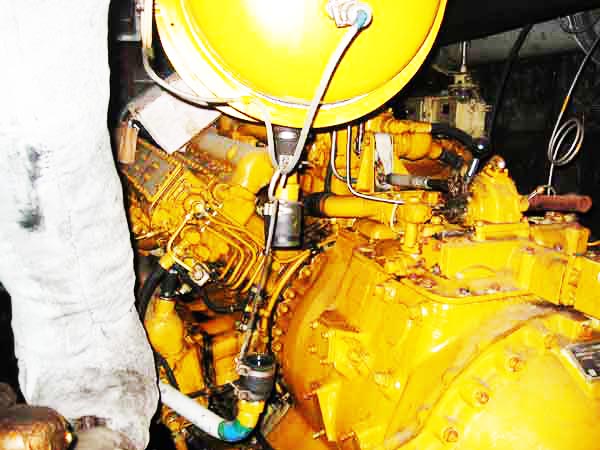

2x3300 hp diesels M-503A-3 (№807, 808 – 2x2000 hp diesels MTU16V2000M90), 2 diesel generators DG-16/1500 x16 kW
Armament:
-
Electronics:
Navigation radar "Pal-N-3"
Capacity:

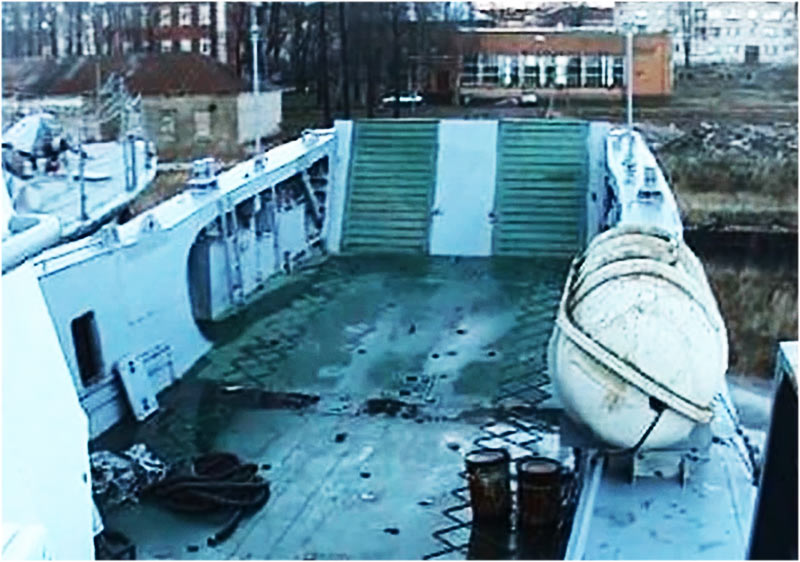

1 main battle tank or 2 BTR or 92 troops or 50 tons of cargo
Crew:
5 (2 warrant officers)
Schematics
Air-Cavity Landing Craft - Project 11770
Modernizations
---

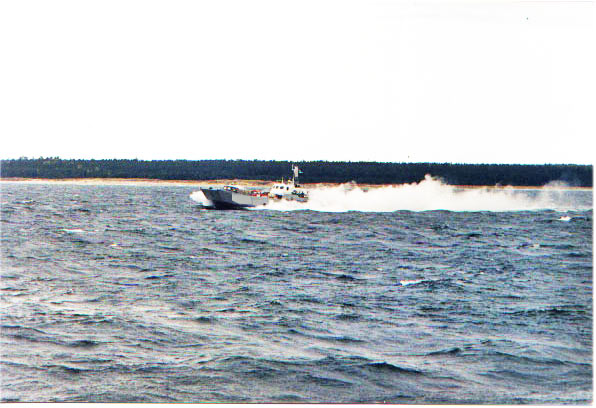

The fast landing craft Project 11770 main task is to quickly get to the shore, to land troopers and just as quickly go away to a safe distance, for example, for a new "load" in the form of armored vehicles and soldiers. High-speed air cavity patrol boat "Serna" is designed for transportation and debarkation on an unequipped shore of wheel and caterpillar technical equipment, crew with arms (92 persons) and other cargos of total load up to 45 tons. The boat can be refloated on it’s own. The boat can transport cargos and equipment with a speed of 30 knots with a sea state up to 2. When the sea state is up to 3, cargo transportation is possible with a speed of 27 knots. Safe navigation is possible with total displacement when sea state is up to 5. The speed in this case will not exceed 8 knots. The boat can transport people and cargos to the sea shore settlements up to 600 miles with full displacement with cargo and sea state up to 3. In this case the cargo weight must not be more than 29 tons. The boat is equipped with two diesel engines ?503?, capacity 4000 hp (2940 kW) each, when the fuel consumption is 165 g/hp h. Endurance of the boat by Provisions and water stock endurance is 24 hours. Service life of the boat is 15 years provided there are two intermediary repairs every 5 years. By 2013 eight Project 11770 Serna boats were built. Developed in Nizhny Novgorod by SPK Alekseeva, the boats are smaller than the French L-CAT used on Mistral. Their length is just under 26 meters and about six meters wide. The dimensions of the landing deck allows the Sernam» carry about 40-42 tons main battle tank, two armored personnel carriers or two armored personnel carriers. Also it is possible to transport personnel only - up to 92 troops with weapons. The Project 11770 boats can accelerate to 30 knots and cover distances up to 600 miles. This high performance is achieved by using the original engine and chassis configuration. Two M503A diesel engines develop power 4000 horsepower and torque on a ventilated water-jet propeller. From the usual pump shoe it is different because the pipe with the screw enters the air trapped under the bottom of the boat. The fact of the matter is that to improve the running characteristics, the project Serna provides speed using the air cavity under the bottom of the boat. As a result of the air layer between the water and the boats reduced resistance and Serna can reach higher speeds.
