Cruising catamaran (sailboat, hard bimini top, 4 cabins)
NAUTITECH 482 - 14.5m  47' 7"ft
ELEGANCE and PERFORMANCE

Further to the customers’ demand, the Nautitech 482, with her 15 meters long will keep the slim hulls and the fines lines .

The cabins and bathrooms are adjustable in order to give space and comfort. The aft transoms are long and opened to the sea for an easy access and the helm seats are fold down. The cockpit is comfortable and convivial with the extra seats. The interior will be very modern with light wood and new furniture. It is certainly one of the finest catamarans on the market. The standard version has 4 double cabins and 2 fore peaks which can be fitted out, allowing berths for 12 people.

Owner  Version

Further to the customer’s demand, the Nautitech 482 with her 15 meters long, will keep the slim hulls and the fine lines .The cabins and bathrooms are adjustable in order to give more space and comfort. The aft transoms are long and opened to the sea for an easy access and the helm seats are fold down.The cockpit is comfortable and convivial with the extra seats. The interior will be very modern with light wood and new furniture.
It is certainly one of the finest catamarans on the market.

In the “Owner” version the starboard cockle has 1 large cabin, 1 office come library, 1 large bathroom with 2 washbasins and a separate shower. The port hull is fitted with 2 double cabins and 2 heads/shower and the fore peak can be fitted out. The optional “Exclusive” finish also gives greater comfort and aesthetic quality to your boat, such as teak cockpit, high quality outdoor upholstery, alcantara, top-of-the-range finish.

Length overall (LOA)  :  49’21”
Waterline length  :  47’5”
Maximum beam  :  25’9
Draft  :  3’11
Mast height : 59′
Light Displacement : 24,441 lbs
Bridge deck clearance : 2’6
Headroom  :  6’3
Sail area  : 1,244 sq ft
Engines  : 2 x 54 hp
Water capacity  : 234 US Gal
Fuel capacity : 116 US Gal
Homologation Navigation Classification CE : Category A
Habitable space  : 4 double cabins + 4 optional fore peak berths – 8/12 berths
OR 3 double cabins + 2 optional fore peaks that can be fitted out – 6 / 10




Specs
 Builder: Nautitech
 Designer: Cabinet Mortain - Mavrikios
 Warranty: 5 years
 Keel: Full
 Hull Shape: Catamaran

Dimensions
 LOA: 50 ft 9 in
 Beam: 25 ft 9 in
 LWL: 47 ft 5 in
 Maximum Draft: 3 ft 11 in
 Bridge Clearance: 2 ft 6 in
 Headroom: 6 ft 3 in
 Dry Weight: 24441 lbs

Engines
 Engine 1:
 Engine Brand: Yanmar
 Year Built: 2013
 Engine Model: Yanmar 54hp
 Engine Type: Inboard
 Engine/Fuel Type: Diesel
 Propeller: Folding propeller
 Drive Type: Sail drive
 Engine(s) Total Power: 54 HP

 Engine 2:
 Engine Brand: Yanmar
 Year Built: 2013
 Engine Model: Yanmar 54hp
 Engine Type: Inboard
 Engine/Fuel Type: Diesel
 Propeller: Folding propeller
 Drive Type: Sail drive
 Engine(s) Total Power: 54 HP

Tanks
 Fresh Water Tanks: (234 Gallons)
 Fuel Tanks: (116 Gallons)

Electronics
 Cockpit speakers
 CD player
 Wind speed and direction
 VHF
 Navigation center
 Log-speedometer
 Depthsounder

Sails
 Fully battened mainsail
 Furling genoa

Rigging
 Steering wheel

Inside Equipment
 Electric bilge pump
 Oven
 Hot water
 Refrigerator
 Battery charger
 Marine head
 Manual bilge pump

Electrical Equipment
 Inverter
 Shore power inlet
 Electrical Circuit: 110V

Outside Equipment/Extras
 Cockpit shower
 Davits
 Swimming ladder
 Cockpit table
 Electric windlass

Covers
 Lazyjacks
 Lazy bag


Construction

The Nautitech 482 is constructed of composite material using a process by vacuum resin infusion for roof and bulkheads, in contact for the hull. The resins used in construction are isophthalic type.

The main structural bulkheads are constructed in first choice of foam/glass fiber in order to lose weight, and the rudder stocks are in high mechanical resistance F16PH stainless steel mounted on self aligning bearings.  Separate fin keels fixed under the hulls constituting a “fuse” if inadvertently grounding, with a soft wear plate for beaching.


Interior Material

•Interior joinery finish : aniegre wood and sandwich foam

•Laminate wood floor

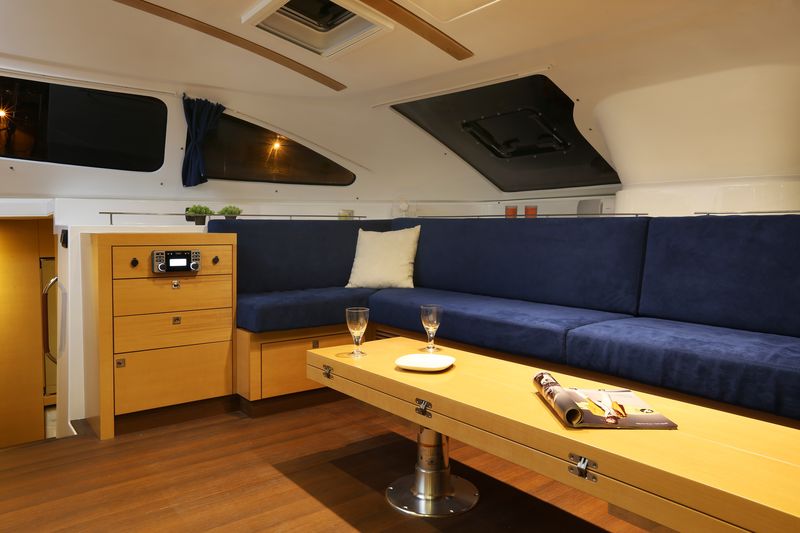

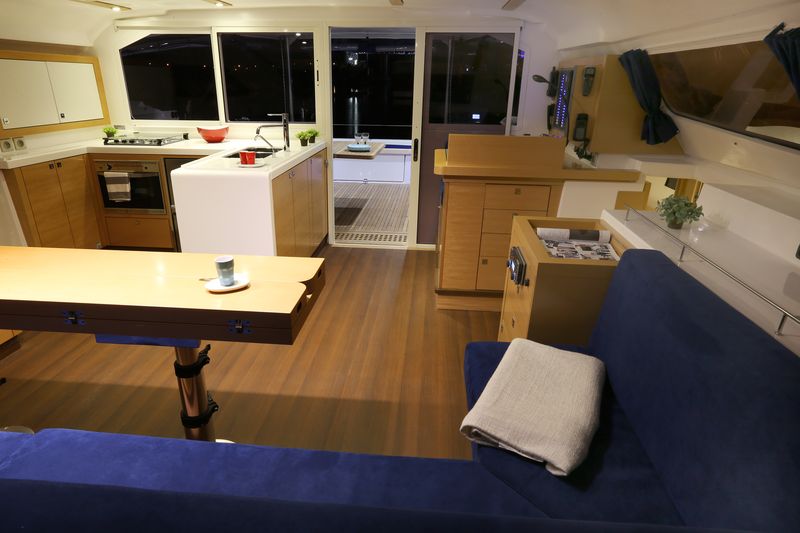

Salon

- Counter-moulded deck head lining with 10 LED spot lights and ceiling light.

- Laminated floor.

- 360°panoramic view

- Ventilation by 5 hatches.

- Sliding saloon door single storey, same level

- Access to survival hatches under the stairs.

- Saloon curtains

- Storage drawers

- Fold down saloon table for ten diners.

- U-shaped seating

- Multi storage spaces.

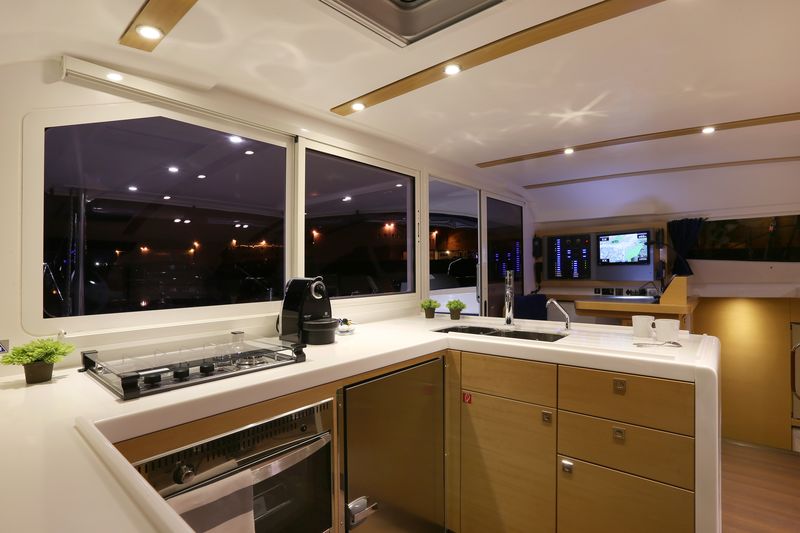

Galley

Located in the saloon and is directly connected to the cockpit by a sliding door

- Corian work top.

- Storage cupboard

- Crockery cupboard to starboard.

- Double S/S round sinks with mixer tap.

- Three burner stove equipped with sea rails ENO

- Inbuilt oven ENO

- Bin hatch in work top containing bin.

- A sliding food hatch between galley and cockpit.

- Stainless steel 160L refrigerator

- Gas pipe with way out by cockpit locker.

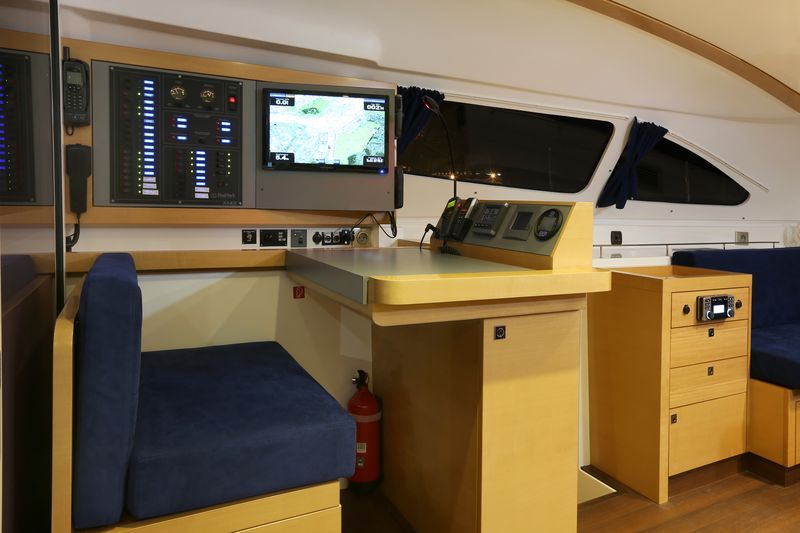

Chart Table

-Leaf foldable chart table.

- Seat with locker.

- Top storage locker

- Storages under chart table

- Console with panel for electronics instruments and electric panel.

- 12 V chart reading light.

- 12v cigar lighter plug.

- Water gauge

- Voltmeter

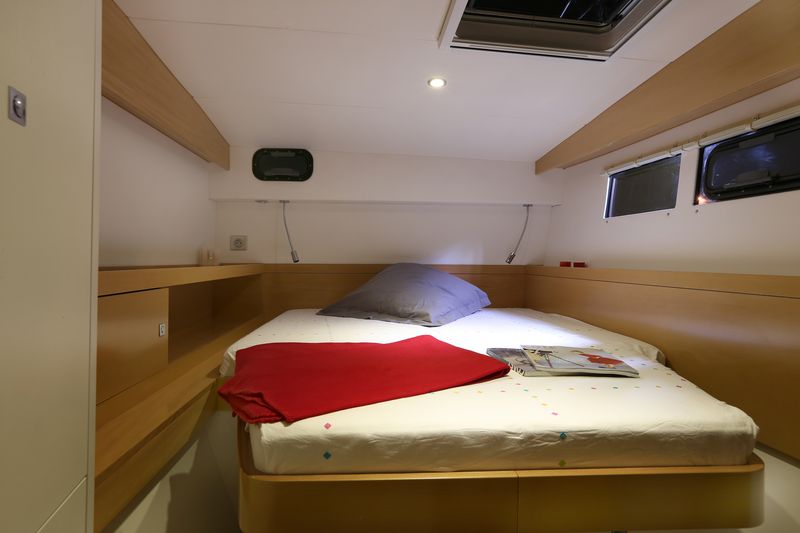

4 Cabin Layout

Four identical cabins equipped with:

- A double bed, 140 x 190 cm approx.

- A 12 cm thick mattress with washable cover.

- A wardrobe.

- Storage in a step.

- Storage under the bed.

- Storage drawers top of the bed.

- Lateral storage shelf along hull.

- Deck head LED light and two reading lights.

- Cabin blinds and curtains.

- Lining on hull side & ceiling, laminated flooring.


Forepeak cabins

Two identical cabins equipped with:

- A double bed, 140 x 200 cm approx.

- A 12 cm thick mattress with washable cover.

- A hanging locker with shelves.

- Storage spaces under the bed.

- Lateral storage shelf along hull.

- One opening port holes and one deck hatches.

- Deck head LED light and two reading lights.

- Cabin blinds & curtains.

- Lining on hull side and ceiling, laminated flooring.

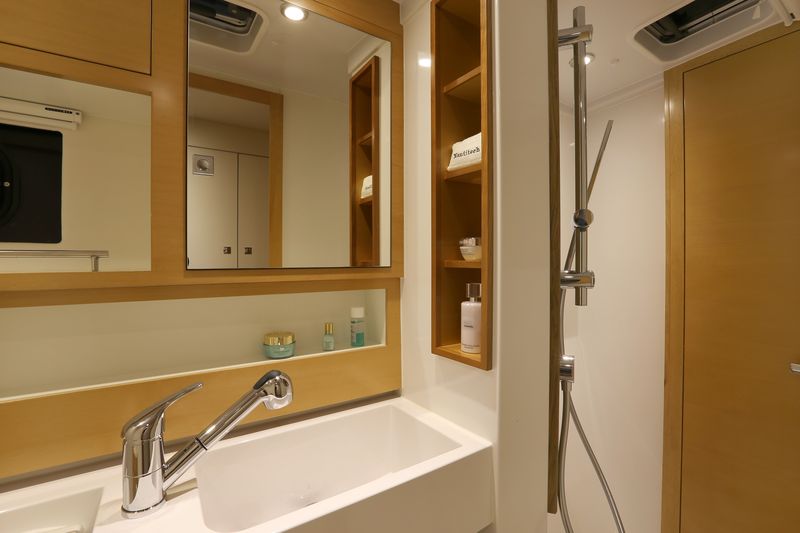

Shower/Heads

Two head compartments entirely counter-moulded and all equipped with:

5

Ce document ne peut en aucun cas être contractuel. Il est donné à titre indicatif et peut être modifié sans préavis.

- One deck hatch - Washbasin unit.

- Washbasin and shower mixer taps with hose.

- A deck head light.

- A manual marine heads.

- A toilet roll holder.

- A mirror

- Towel and flannel holders.


Owners Version

- Forecabin with access through deck hatch.

- Service area with door access.

- Separate head.

- Separate shower.

- Heads equipped with two washbasins.

- Owner cabin bed 200X160 cm approx.

- Three book shelves.

- Two leafed folding desk with swivel seat.

- Seat with storage space.

- A hanging locker with 4 shelves.


Deck Fittings

- Anodised aluminium forward beam, reinforced by a martingale cable and a longitudinal beam.

- Trampoline line laced to hull and beam.

- Two forward pulpits with teak seat.

- Navigation lights on beam and davits.

- Three sail and fender lockers.

- Chain locker.

- 1500W Quick electric windlass.

- Main anchoring kit. 24kg Fob Rock type, 60 m of chain of 10mm diameter, 7m 16 diameter cable.

- Six mooring cleats.

- Fiveteen deck hatches.

- Toerail imitation teck

- One S/S and teak hand rails on coachroof side.

- Genoa furling unit with foot blocks and cam cleat.

- Two Harken ST50 winches for mainsheet and traveler.

- One Harken ST50 winches for solent sheet and self-taking jib rail.

- One Harken ST50 winches for genoa sheet.

- Self taking traveler for solent

- Mainsheet track with ball-bearing traveller and clutches.

- 8 fenders, 4 mooring ropes

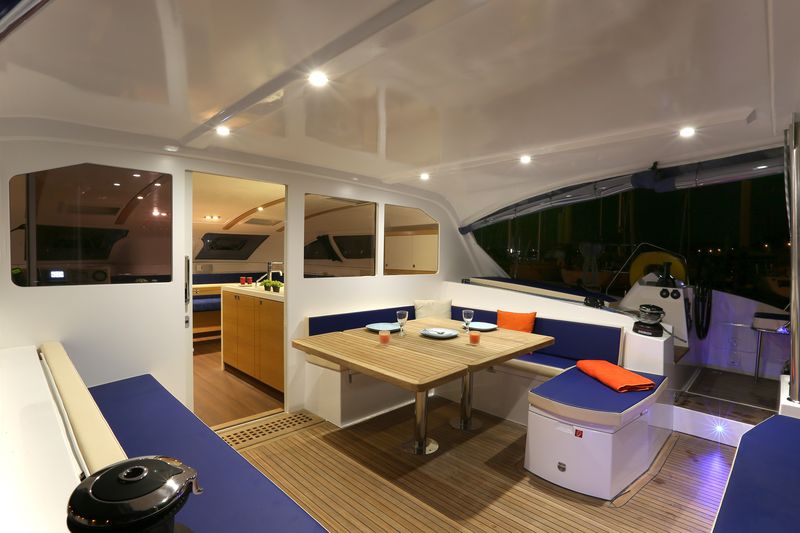

Cockpit

- Six deck head LED lights.

- GRP cockpit table with extension.

- Drainage scuppers.

- Five cockpit lockers.

- straight tube davits, tackle and blocks.

- Outboard motor bracket


Helm Stations

- Removable S/S helm seats and backboard

- Two Ø800 carbon/galls steering wheels.

- Electronic console

- Controls and engine panels on port side.

- Two steering compasses.

- 3 winch handles with 2 pockets.

- Emergency tiller.

- Two manual bilge pumps.

- Diesel fillers.


Transom Bathing Areas

- Aft pushpits with life-ring attachment.

- Two cleats for tender.

- Two hand rails.

- Deck showeron portside

- Bathing ladder on portside


Mast Structure

Deck stepped mast in anodised aluminium with double spreaders and jumper, equipped with:

- One Harken ST50 two speed winch (halyards / reef lines / gennaker).

- One snatch block for reef line return.

- Navigation lights at top of mast.

- One winch handle case.

- 12 diameter boom topping lift on cleat.

- Two lazy-jack fasteners.

- Mainsail sheet rail for travellers.

- All mast fairleads.

- 14 diameter mainsail halyard with pulley-block clutch.

- Two 14 diameter genoa halyards with clutch.

- 14 diameter spinnaker halyard with clutch.

- Deck light

Anodised aluminium boom with:

- Mainsheet tackle blocks.

- 3 reef lines with dead-eyes.

- Cleats for lazy-jack.


Sails

- 84 M² full batten mainsail.

- Self-tacking furling solent 32 M²

- Nautitech colour UV protective strip on solent.


Running Rigging

- One mainsheet.

- One solent sheet on traveller.

- One solent furling line.

- Two mainsheet traveller control lines


Engines

- Engine access under aft bathing areas.

- Trappe of engine access.

- Engine compartment soundproofing.

- Two sail drive 54 HP Yanmar 4JH4-CE SD 50 engines.

- Alternator 80 Ah

- Lifting three-blade propellers bronze Flexofold.

- Fuel tanks capacity approx 2 x 220L, with VDO gauges on electric panel.


Electrical System

- Four 12V 150A services batteries (gel) (no maintenance).

- Two 12V 110A engine batteries (no maintenance).

- Power load repartitor (electronic).

- Electrical panel with 12V circuit breakers.

- Positive battery switches.

- 12/220V ; 800W converter Mastervolt.

( Optional to adjust electricity system in 110 V / 60 Hz )


Plumbing and Pump Equipment

- Two freshwater tanks about 360L.

- Two water heater about 40 L.

- Two pressurised water system.

- Two electric pumps for bilge.

- Two electric sump pumps.

- Two electric pumps for shower.

- Two manual bilge pumps.

- Two holding tank in port board hull.


The EXCLUSIVE Finish (option)

-Massive Teak cockpit floor and transom steps

-Cockpit cushions with backboard + Two cockpit sun -

baths*+6 exterior cushions* assorted

-Two lights LED (spots) under bridge deck

-Name of the boat on the Lazy bag

-Windlass remote control and counter chain at helm station

-Transom/cockpit blue LED lights

-Saloon upholstery assorted + 6 cushions*

-Companion ladder hand rails (leather and S/S)

-Mosquito net in deck hatches and on port holes

-Lining on ceiling in cabins and saloon

-Led lights under spreader (4)

-LED red lighting at the chart table.

-Fenders cover (8)

-2 carbon/glass steering wheels

-Guardrail opening

-Spacerflex mattress in each cabin

-Convertible saloon table in coffee table

-Folding table in massive teak in cockpit

-2 hand rails on boom.

-S/S rub strakes

-Opening jack on cockpit lockers.

-Weather gear pegs in cockpit.

* Saloon upholstery choice between : Alcantara, microfiber Suede, Leather, Citrus / expect leather for saloon curtains

Cockpit cushions choice between : Diamante, Silvertex, Sunbrella, Stamskin, Batyline
